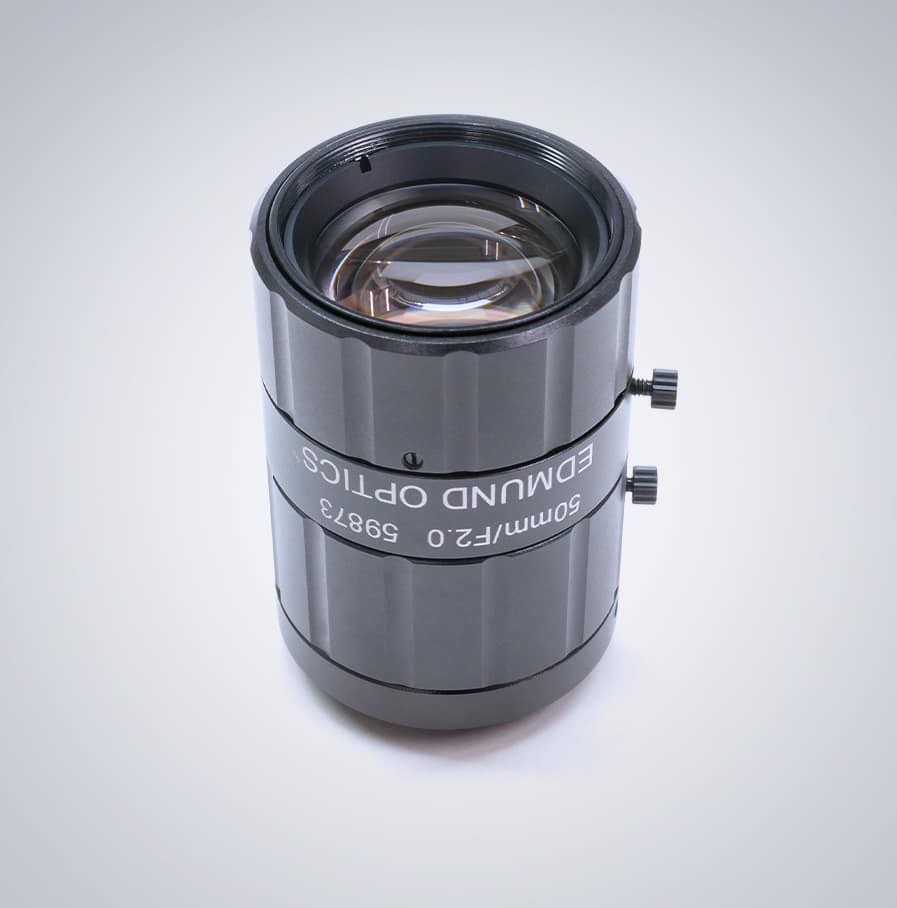

Edmund Optics C-Mount 2/3″ 50mm f/2.0 (C Series)
Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.
Specifications
| Edmund Optics Model # | 59-873 |
|---|---|
| LUCID SKU: | EOC0500 |
| Focal Length | 50 mm |
| Field of View @ Max Sensor Format | 42.5mm – 8.5° |
| Distortion(%) | <0.2 |
| Working Distance | 250mm – ∞ |
| Field of View, 1/2″ Sensor: | 31.0mm – 6.2° |
| Field of View, 1/3″ Sensor: | 23.0mm – 4.6° |
| Field of View, 2/3″ Sensor: | 42.5mm – 8.5° |
| Number of Elements (Groups) | 6 (4) |
| Type | Fixed Focal Length Lens |
| Maximum Length | 53.7 mm |
| Maximum Sensor Format | 2/3″ |
|---|---|
| Coating | 425 – 675nm BBAR |
| Field of View, 1/1.8″ Sensor | 34.7mm – 6.9° |
| Field of View, 1/2.5″ Sensor | 27.6mm – 5.5° |
| Field of View, 1/4″ Sensor | 17.2mm – 3.5° |
| Aperture (f/#) | f/2 – f/22 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.018 |
| Outer Diameter | 35.8 mm |
| Weight | 107 g |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
USD $434.00
Register or login for pricingRecommended IP67 Lens Tube
The following IP67 lens tube has been tested to show no clipping or vignetting with this lens.
