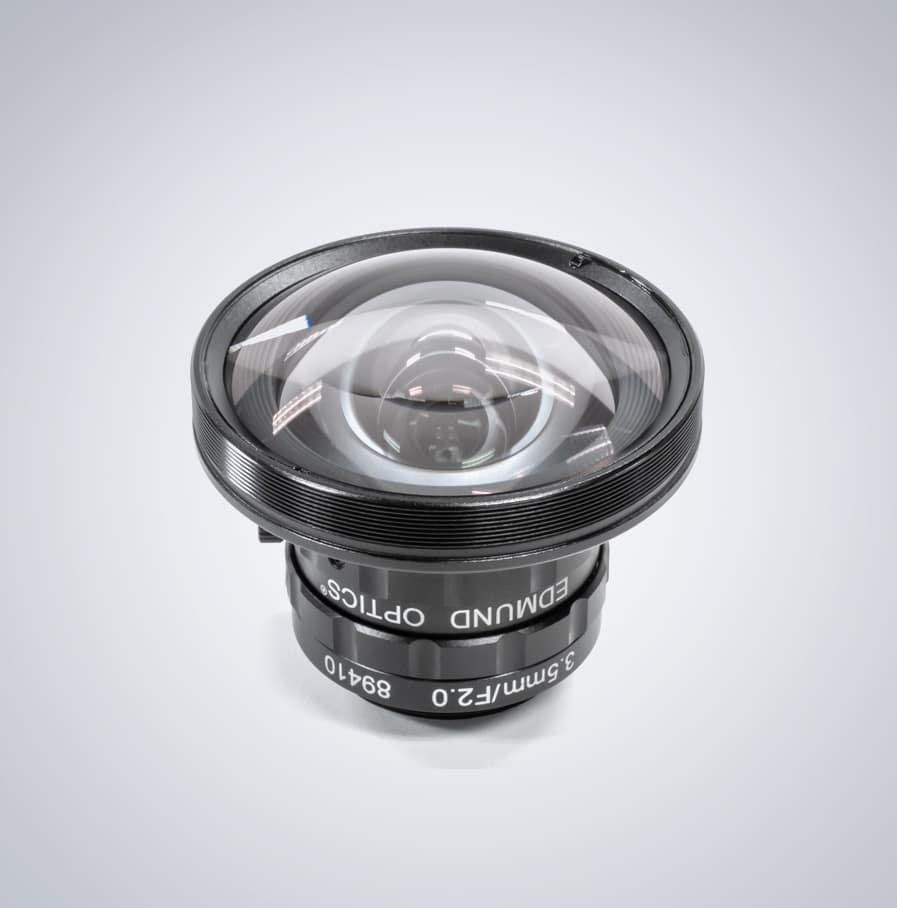

Edmund Optics C-Mount 1/1.8″ 3.5mm f/2 (C Series)
Edmund Optics ultra-compact, TECHSPEC® C Series Fixed Focal Length Lenses are designed for use in machine vision applications with the working distance and resolution requirements of factory automation and inspection in mind. TECHSPEC® C Series Fixed Focal Length Lenses feature large maximum apertures, allowing these high performance lenses to be used in even the most restrictive lighting conditions. Each lens has a broadband anti-reflection coating, locking iris and focus adjustment with recessed set screws, and a ruggedized, robust housing for space-restrictive applications.
Specifications
| Edmund Optics Model # | 89-410 |
|---|---|
| LUCID SKU: | EOC0035 |
| Focal Length | 3.5 mm |
| Field of View @ Max Sensor Format | 102.4° |
| Distortion(%) | -21 |
| Working Distance | 0mm – ∞ |
| Field of View, 1/2″ Sensor: | 94.1° |
| Field of View, 1/1.8″ Sensor | 102.4° |
| Field of View, 1/2.5″ Sensor | 87.2° |
| Number of Elements (Groups) | 8 (7) |
| Type | Fixed Focal Length Lens |
| Maximum Sensor Format | 1/1.8″ |
|---|---|
| Filter Thread: | M105 x 1.00 with required adapter #89-848 |
| Coating | 425 – 675nm BBAR |
| Aperture (f/#) | f/2 – f/11 |
| Mount | C-Mount |
| Numerical Aperture NA, Object Side | 0.0572 |
| Outer Diameter | 50.00 mm |
| Weight | 110 g |
| Length (mm) | 39.30 |
| Fixing Knobs Bundled | 4 total: 2x normal, 2x recessed |
USD $540.00
Register or login for pricing
