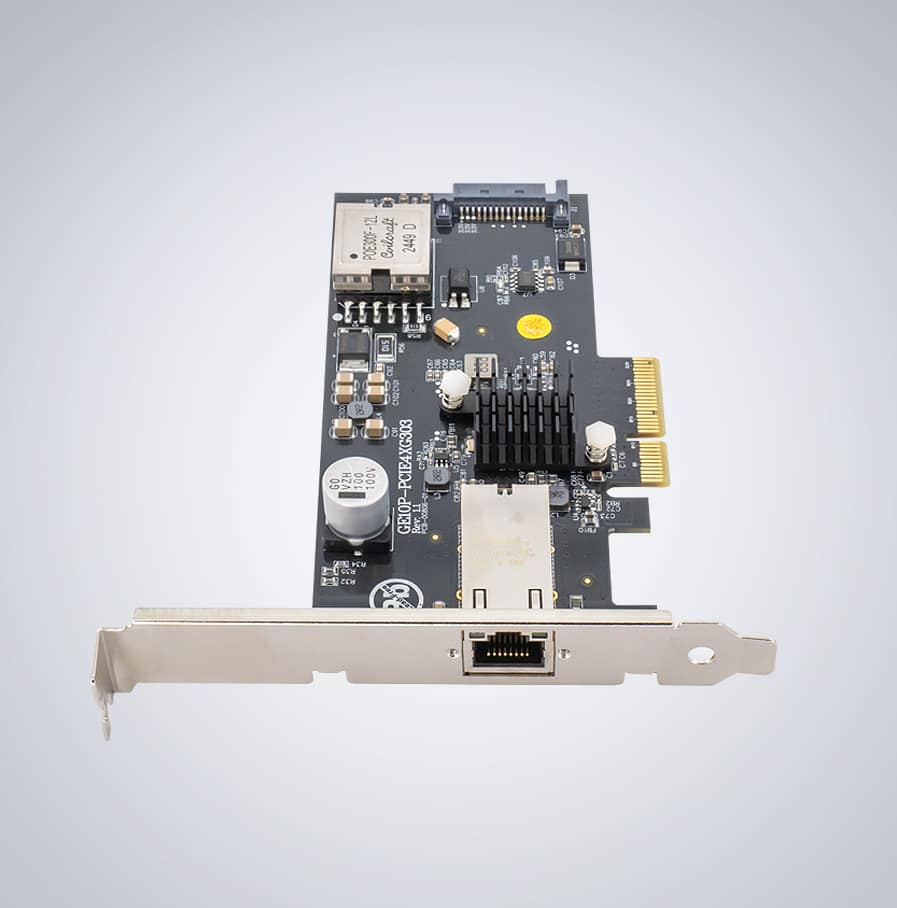

10G/5G/2.5G/1G PoE+ NBASE-T Netzwerkkarte

Die PCIE-POE1-MG2 Ethernet Interface Card verfügt über 1 unabhängige 10 Gigabit Ethernet Ports zur Datenübertragung. Die Karte ermöglicht Datenübertragungsraten von bis zu 10 Gbit pro Sekunde (10GBASE-T). Auch kompatibel mit 5GBASE-T/ 2,5GBASE-T/ 1000BASE-T/ 100BASE-TX.

Spezifikationen

HerstellerNr.	ioi GE10P-PCIE4XG301
PCI Express	PCI Express Gen3 or Gen2, (Supports line rates of 8.0 GT/s and 5.0 GT/s per lane) Bus width: Supports Gen3 x4 or Gen2 x4 MSI, MSI-X, and legacy INTx PCIe interrupts, Improved CPU utilization and network performance
MAC	Large Send Offload (LSO), Receive-Side Scaling (RSS), Direct Cache Access (DCA) header checksum WoL power management On-chip CPU DASH MACsec Quality of Service (QOS) support Jumbo frames (up to 16Kbytes) IPv4, IPv6/TCP and IPv6/UDP checksum offload
PHY	Integrated Aquantia AQrate PHY featuring NBASE-T technology 100 meters over Cat 6a at 10Gbps 100 meters over Cat 5e and Cat 6a at 5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps Advanced cable diagnostics with On-chip high resolution cable analyzer Audio Video Bridging (AVB) and 1588v2 EEE support Supported Data Rates: 10G/ 5G/ 2.5G/ 1G/ 100 Mbps Standard compliance: IEEE 802.3bz – NBASE-T, IEEE 802.3x – flow control, IEEE 802.1P – quality of service, IEEE 802.1QAV – AVB

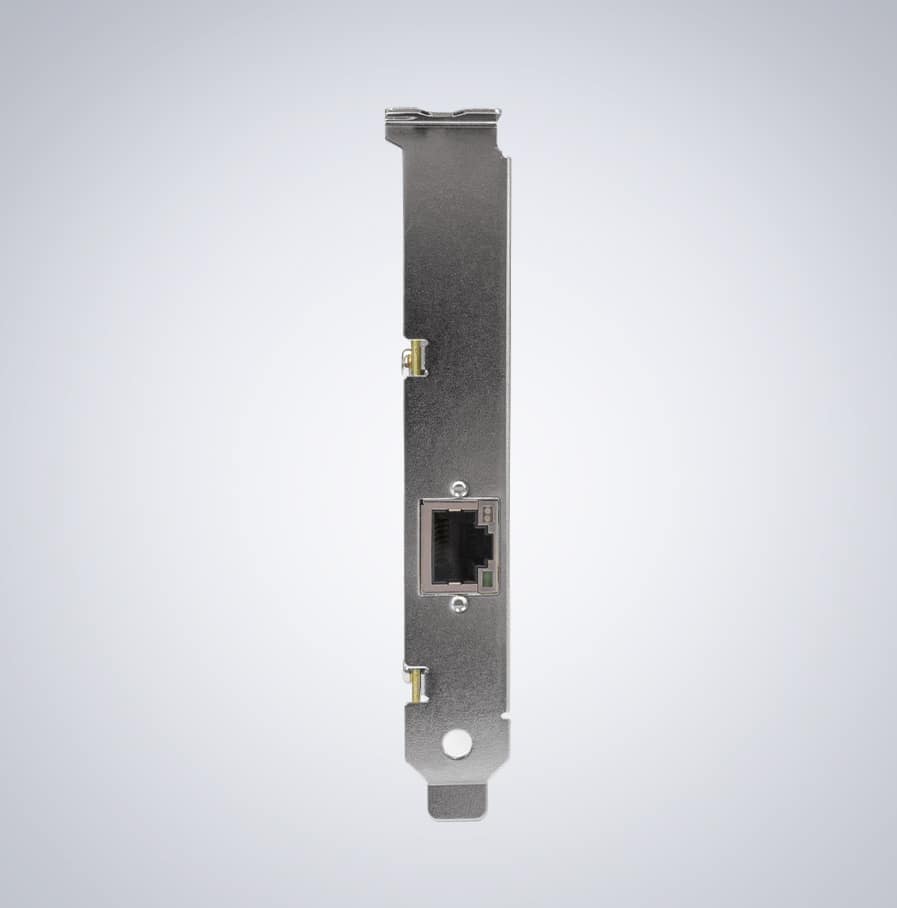

Anzahl Ports	One 10GBASE-T RJ45 Ethernet port with Screw Holes for thumbscrew locking Type Ethernet Cable

USD $240.00

Artikelnummer: PCIE-POE1-MG2 Kategorie: PC-Karten, PoE, Kamera Netzteil
