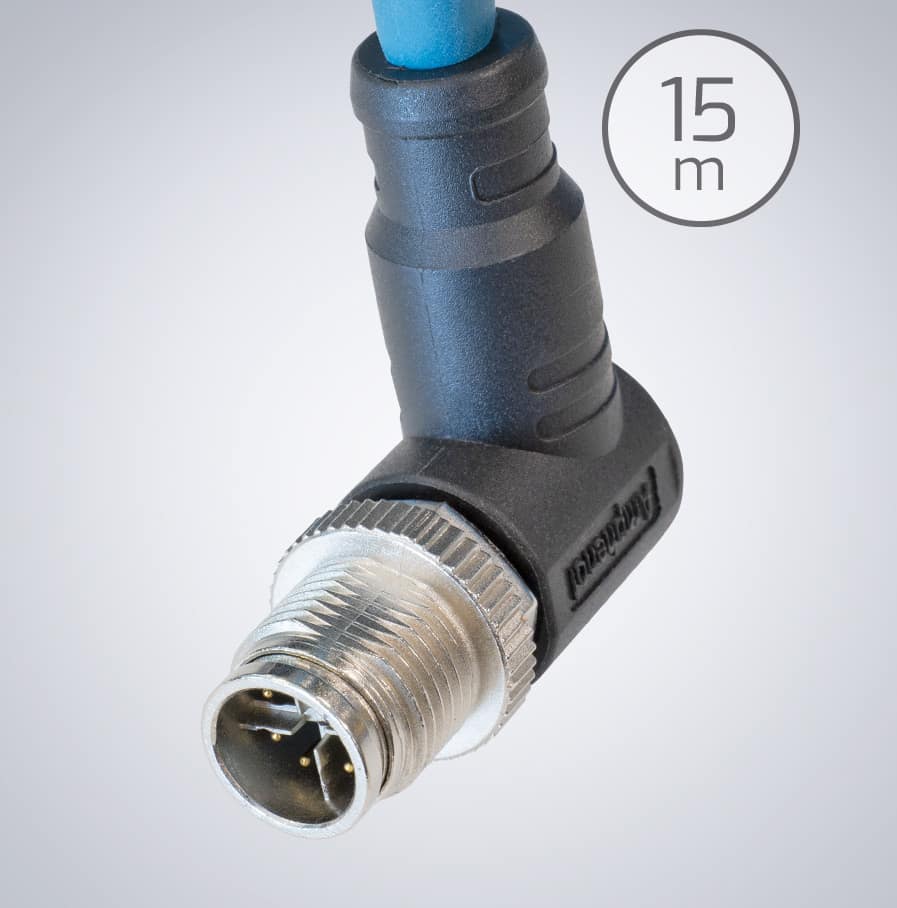

M12 to RJ45 IP67 Cat6a Cable [Right Angle, Up] – 15m, (Amphenol)

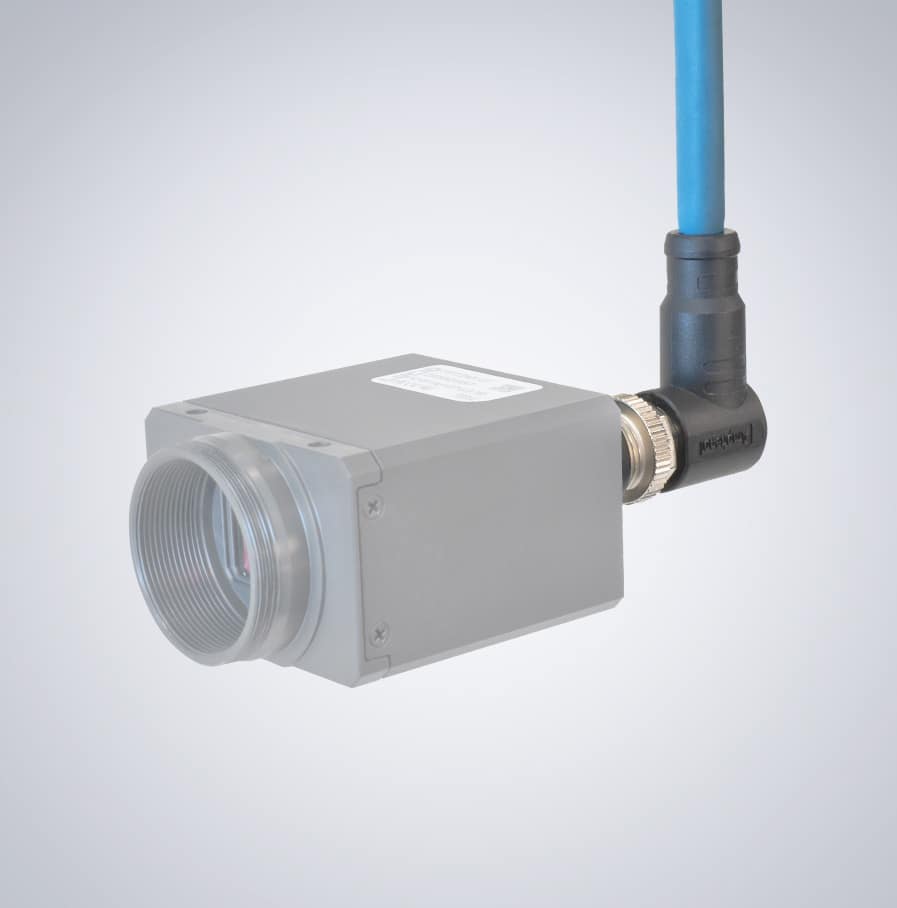

Designed for robust operation in industrial environments, including environments where dirt, dust, and water are present. This right angle cable bends upwards towards the Triton, Atlas, Helios top side. Compatible with all Triton, Atlas, Helios camera models.
For shipments entering the U.S: A copper tariff applies to this product. This tariff is not calculated at checkout. A LUCID sales representative will contact you after purchase to arrange the copper tariff charge. Please refer to the Tariff section of the Terms and Conditions.
Specifications
| Model # | LUCID CAB-MR-15M-RA2-A |
|---|---|
| Connector Type | M12 X-Coded 8pin Male Connector with shielding (IEC 61076-2-109) to RJ-45 male 8P8C with shielding |
| Cable Rating | CAT6a – 10Gbit/s |
| Color | Dark Green |
| IP Rating | M12 connector is IP67 Cable molding is IP65 |
| Length | 15.0 m (49.2 ft) |
| Weight | 658 g |
| AWG rating | 26 AWG |
| Operating Temperature | -25°C to 50°C |
Cable Drag Chain Testing Specs
| Bending Radius | Moving Frequency | Moving Distance | Requirement |
|---|---|---|---|
| 100mm | 40 cycles/min | 1m | 600,000 cycles |
USD $115.00
Register or login for pricing
