LUCID 4-CH 10G/1G RDMA PoE+ Host Channel Adapter (HCA) Network Card

  1. Home
  2. Accessories
  3. Interface Cards, PoE Injectors
  4. LUCID 4-CH 10G/1G RDMA PoE+ Host Channel Adapter (HCA) Network Card

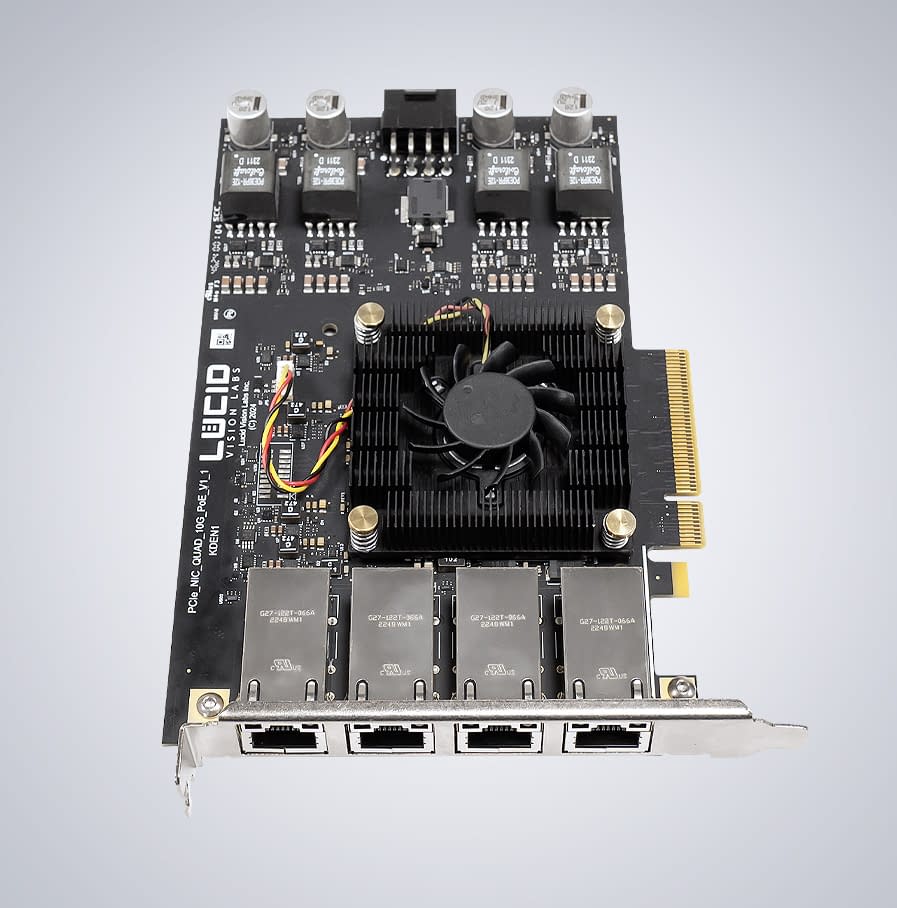

The 4-Port 10GigE RDMA NIC (P/N: PCIE-10GPOE4-LUCID2) is optimized for high-performance machine vision cameras, supporting LUCID’s RDMA-enabled Triton10 and Atlas10 cameras. It complies with GigE Vision standards and supports RDMA (RoCE v2), TCP, and UDP. Each PoE+ port offers isolated power control which can be enabled or disabled programmatically, ensuring flexible, reliable, and high-speed connectivity for industrial imaging. Please note this NIC is not NBASE-T compatible and does not support 5GigE or 2.5GigE.

Specifications

Manufacturer: LUCID Vision Labs
Chipset Broadcom BCM57416
Number of ports 4
Port type RJ45
PCIe version and lanes PCIe 3.0 x8 size with bifurcation* set to x4/x4 or x4/x4/x4/x4
Connection speed 10GigE and 1GigE
Jumbo frame size 9174 bytes
PoE Support PoE+ (IEEE 802.3at)
Power 21.7W via PCIe, 120W max (30W max each channel) via 8-pin 12V aux.
Isolated PoE for each channel.
PoE on each port can be turned on / off programmatically.
Operating temperature range 0–55°C ambient
Storage temperature range -30–60°C

*Bifurcation, also known as Raid Mode or PCIe Lane Distribution, is a motherboard feature that allows the division of data lanes in a PCIe slot. The PCIe slot must be split in either x4/x4 or x4/x4/x4/x4. If your motherboard does not have bifurcation, this will result in only two ports visible on the PC. Here are some examples of ASUS motherboards with PCIE bifurcation.

USD $695.00

Register or login for pricing
SKU: PCIE-10GPOE4-LUCID2 Category:

Getting Started / Downloads

TitleFilenameFile TypeVersionDateFile SizeLink
Windows Driver for PCIE-10GPOE4-LUCID2Windows_Drivers-232.0.155.7.zipzip232.0.155.72025-07-161.7 MB
Linux Driver for PCIE-10GPOE4-LUCID2Lucid_Broadcom_Driver_Package_v232.tar.gzgz 232.1.132.8c2025-07-08221 kB
PCIE-10GPOE4-LUCID2 Adapter Specification and Quick Start GuidePCIE-10GPOE4-LUCID2+Adapter+Specification+and+Quick+Start+Guide+v1.3.pdfpdf1.32025-09-25812 kB
Linux drivers for LUCID network cardsLucid_Broadcom_Driver_Package_v234.tar.gzgz2342025-08-18322.3 MB
Windows drivers for LUCID network cardsLucid_Broadcom_Driver_Package_v234.zipzip2342025-08-1810.7 MB
Linux tools for LUCID RDMA adaptersLucidNicTools_Linux_0.1.108.tar.gzgz0.1.1082025-09-2532.3 KB
Windows tools for LUCID RDMA adaptersLucidNicTools_Windows_1.0.64.1.zipzip1.0.64.12025-09-25251.3 KB
