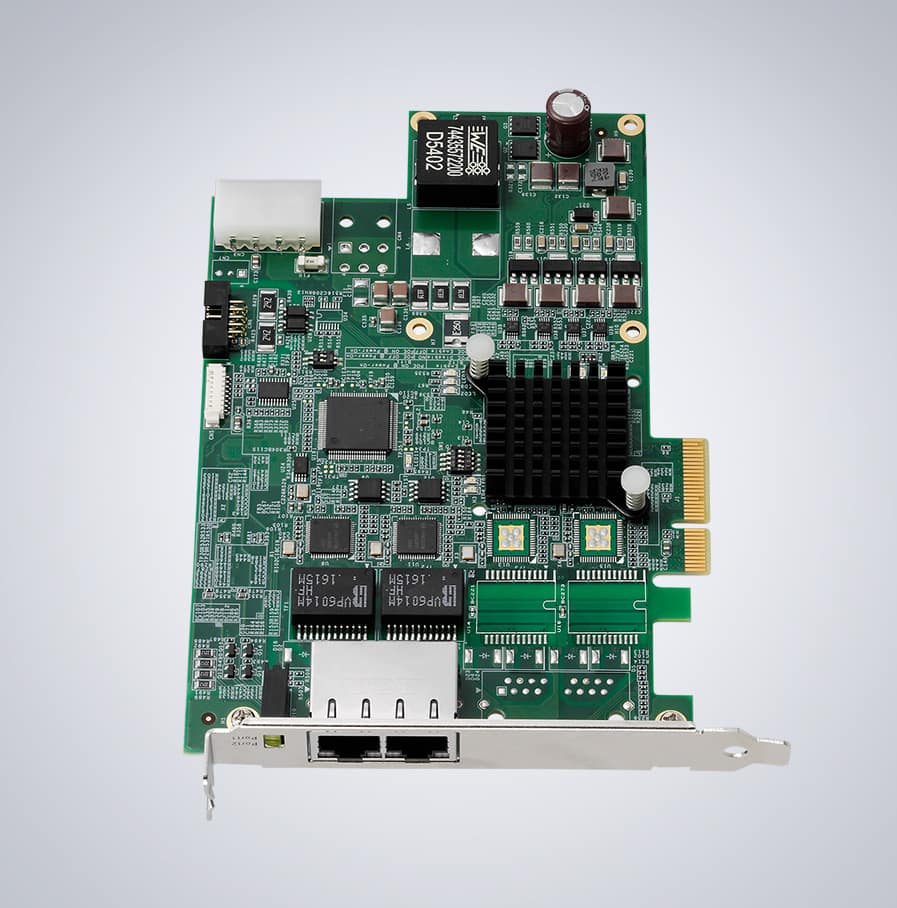

ADLINK 2-CH PCIe GigE Vision PoE+ Card
This product is no available for purchase through our website. Please visit ADLINK for product and purchasing information.
ADLINK’s PCIe-GIE72 PCI Express® PoE+ interface card supports 2 channel independent Gigabit Ethernet ports for multiple GigE Vision connections transferring up to 1 Gb/s per port. PoE+ provides up to 30W power and automatic detection for stable, reliable connections.
Specifications
Model # | PCIE-POE2 |
---|---|
Manufacturer P/N: | ADLINK PCIe-GIE72 |
Form Factor | PCI Express® x4 |
Chipset | Intel I210AT |
Ethernet Port | 2 fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports. PoE+ (Power over Ethernet Plus), IEEE 802.3at compliant, supporting 0, 1, 2, 3, and 4, providing up to 30W. 9 kB jumbo frame support. |
Functions | • PoE power management • Link aggregation, IEEE 1588 (PTP technology) • Multiple cards and multiple cameras • PoE protection |
Operating Environment | 60W PoE: 0˚C to +70˚C (32˚F to 150˚F) Humidity: 5% to 90% RHNC |
Power Requirements | +3.3V max @ 2.5A • Max 61.6W PoE power w/ ether 4-pin (+12V@6A) or 6-pin (+12V@6A) Molex connector (sold separately) • Max 20W PoE power w/ PCIe slot (+12V@2.1A) |
Dimensions | 167.6 mm x 106.6 mm (6.6” x 4.2”) (W x L) |
USD $280.00
Register or login for pricing
