FFC to M12/JST Extender Board and FFC cable for Phoenix

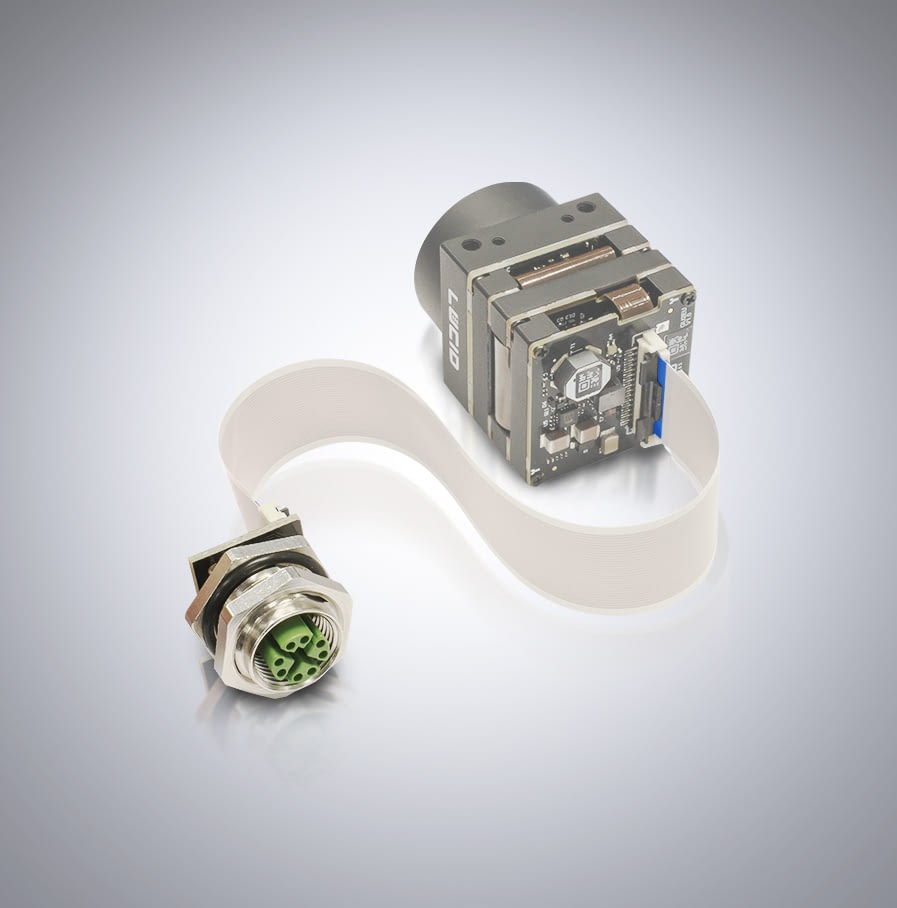

The FFC-15-JST-M12 extends the connector board of any 24x24mm or 28x28mm Phoenix with the FFC connector. Each FFC-15-JST-M12 comes with an M12 board with JST connector along with a 15cm FFC cable with lock tabs.
The FFC-15-JST-M12 Kit Includes:

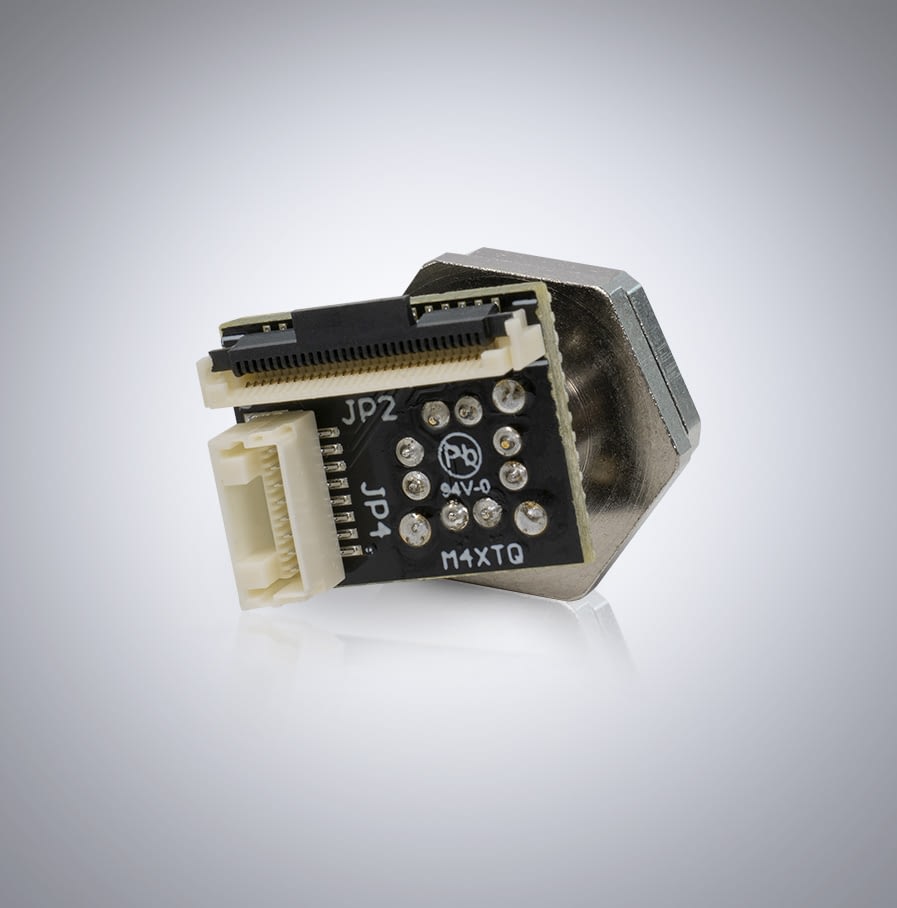

- 1 x M12 Connector board with JST on reverse side
- 1 x 15cm FFC cable with lock tabs
USD $80.00
Register or login for pricingGPIO JST Pin Layout
| Pin Number | Pin Description |
|---|---|
| 1 (Red) | VAUX (12-24V DC Power Input) |
| 2 (Brown) | Non-isolated bi-directional GPIO channel (Line 2) |
| 3 (Orange) | VDD GPIO (2.5V Power Output) (Line 4) |
| 4 (Brown) | Non-isolated bi-directional GPIO channel (Line 3) |
| 5 (Black) | GND (Camera GND) |
| 6 (Blue) | OPTO GND (Opto-isolated Reference) |
| 7 (White) | OPTO OUT (Opto-isolated Output) (Line 1) |
| 8 (Green) | OPTO IN (Opto-isolated Input) (Line 0) |
