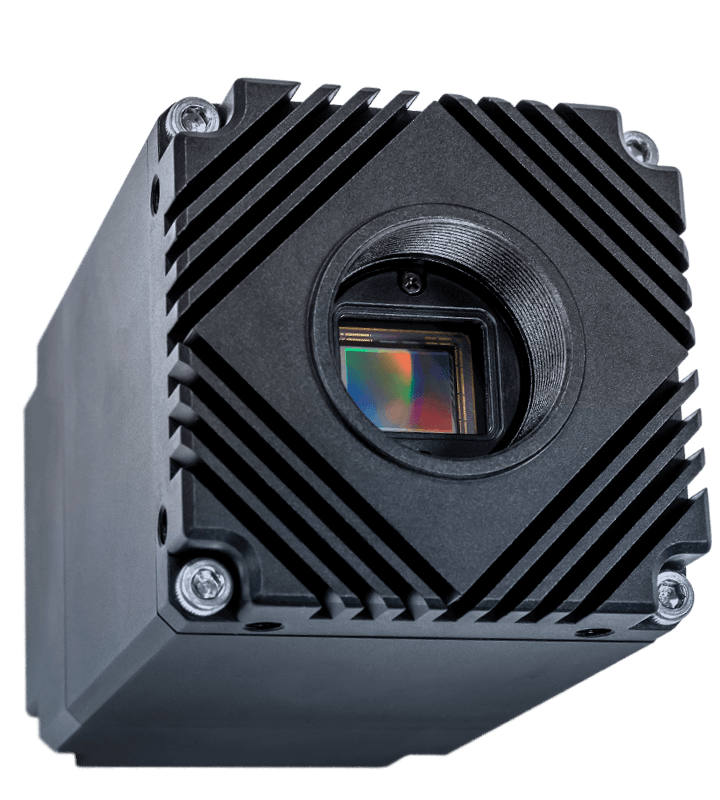

25GigE Industrial RDMA Camera

Atlas25 combines 25GigE with RDMA and Sony’s 4th Gen Pregius S sensors. This fanless camera features a 17-pin M12 GPIO and an integrated optical transceiver for a direct LC connection, cutting costs and simplifying installation while maintaining a compact camera size. With Remote Direct Memory Access (RDMA), the Atlas25 sends image data directly to PC memory, greatly reducing CPU load.

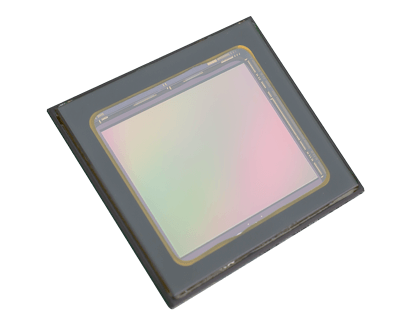

Sony Pregius S
Sensors

Get Yours Now

• 3.1 GB/s • RDMA (RoCE v2) • Direct LC Connection • 17-Pin GPIO

Atlas25

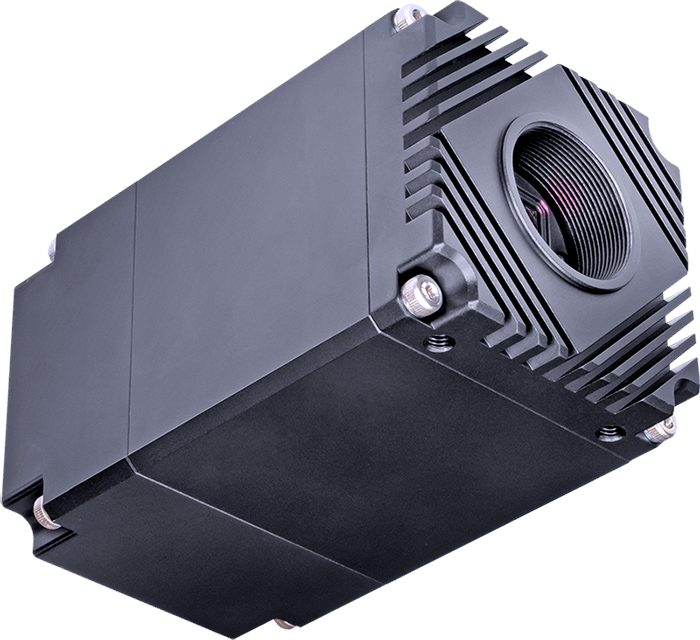

Atlas25 - 25GigE RDMA Camera for Industrial Applications

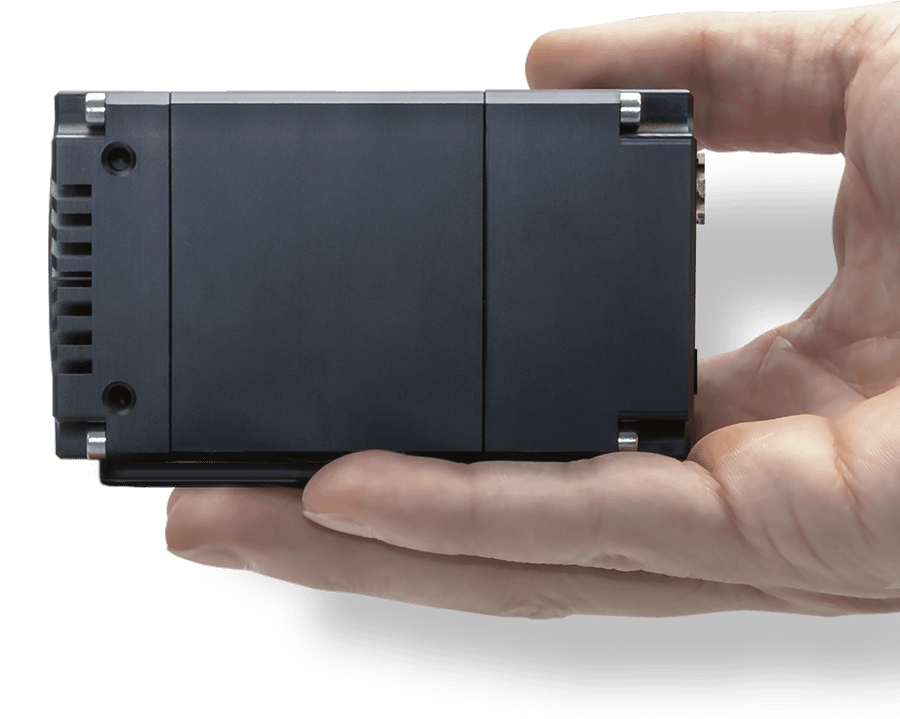

The Atlas25 25GigE industrial camera offers high-throughput data rates, RDMA efficiency (RoCE v2), and Sony Pregius S sensors for high-speed imaging, automation, robotics, and AI vision systems requiring reliable GigE Vision 3.0 performance. Designed for efficient heat dissipation, its compact thermomechanical case requires no external heatsinks or fans.

25GigE

High-Speed Camera | Maximize Sensor Frame Rates

Direct

LC Connection

Simplified Installation and
Reduced Costs.

RDMA

Reduce CPU Usage with Remote DMA (RoCE v2)

Atlas25 25GigE Camera Active Sensor Alignment

Active Sensor Alignment Precise Optical Alignment for Every Unit

17-Pin GPIO Enhanced Camera Control

Explore our Atlas25 25GigE camera models

Model	MP	Resolution	FPS	Sensor	Format	Pixel Size	Shutter	Lens Mount	Chroma	Interface
ATV245S	24.5 MP	5320 x 4600 px	89 fps	Sony IMX530 CMOS	1.2"	2.74 µm	Global	C	Mono / Color	25GigE LC Duplex MM Fiber
ATV204S	20.4 MP	4504 x 4504 px	104 fps	Sony IMX531 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	25GigE LC Duplex MM Fiber
ATV162S	16.2 MP	5320 x 3040 px	152 fps	Sony IMX532 CMOS	1.1"	2.74 µm	Global	C	Mono / Color	25GigE LC Duplex MM Fiber
ATV124S	12.3 MP	4096 x 3000 px	184 fps	Sony IMX535 CMOS	1/1.1"	2.74 µm	Global	C	Mono / Color	25GigE LC Duplex MM Fiber

25GigE: High-speed, low-latency interface for next-generation machine vision.

Ultra-High Bandwidth Camera

25 Gbps data transmission for high-speed maximum throughput with outstanding image quality.

Scalable Multi-Camera Performance

Easily build multi-camera systems using standard optical network switches and 25GigE NICs.

Reliable Fanless Camera Design

No heatsinks or active cooling needed, wide operating temp of -20 to 50°C ambient.

GigE Vision 3.0 Compliant

Compatible with 3rd party software and hardware vendors that are GigE Vision 3.0 + RDMA compliant.

Frame Rate Chart:

Max FPS comparison of 24.5MP Sony IMX530 sensor.

With 25GigE, you can unlock more performance of high-speed sensors like Sony’s IMX530 CMOS sensor. Compared to 1, 2.5, 5, and 10GigE interface data throughputs, 25GigE provides enough bandwidth to stream the IMX530 sensor at 89 FPS without compression. This higher interface speed ensures faster frame rates, lower latency, and greater scalability for multi-camera systems.

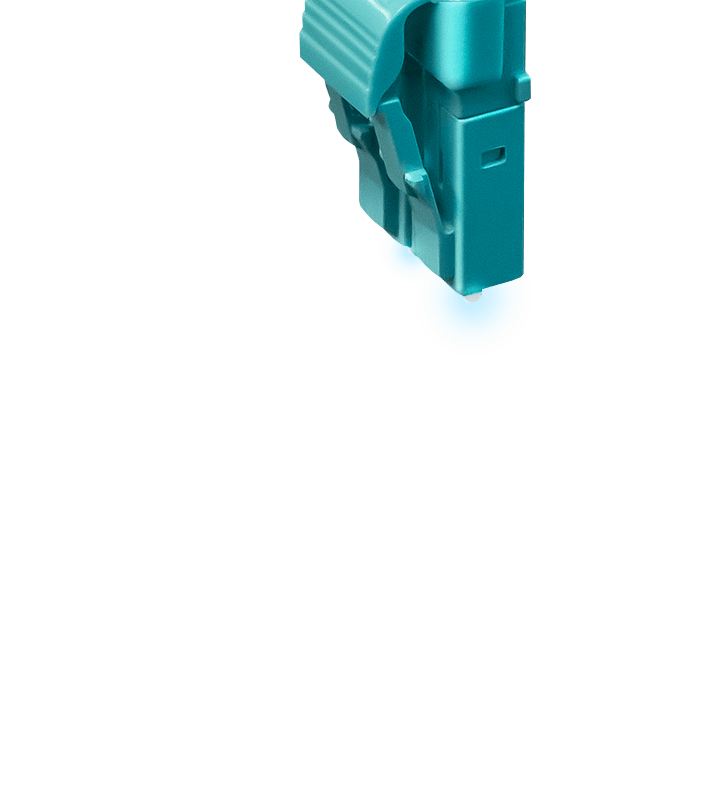

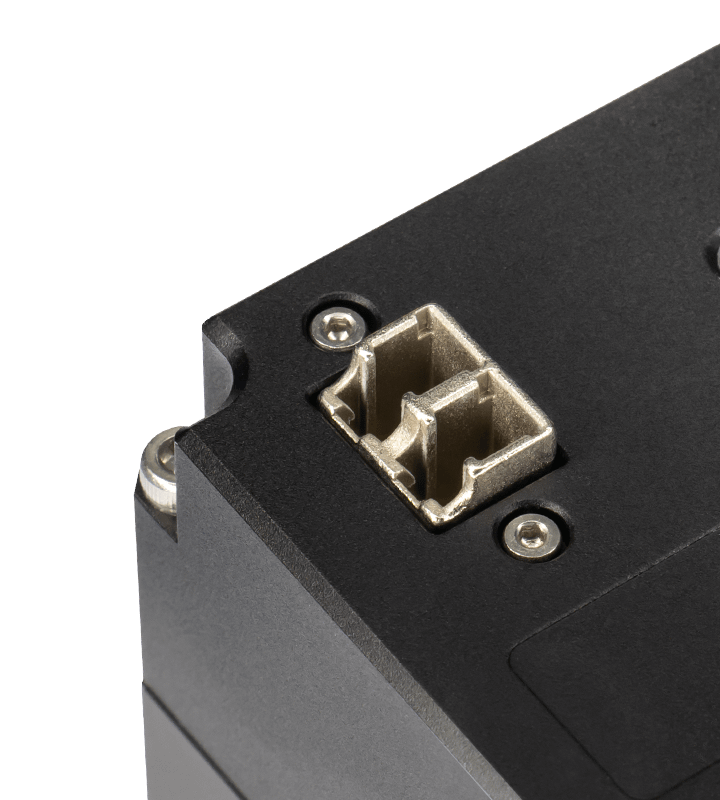

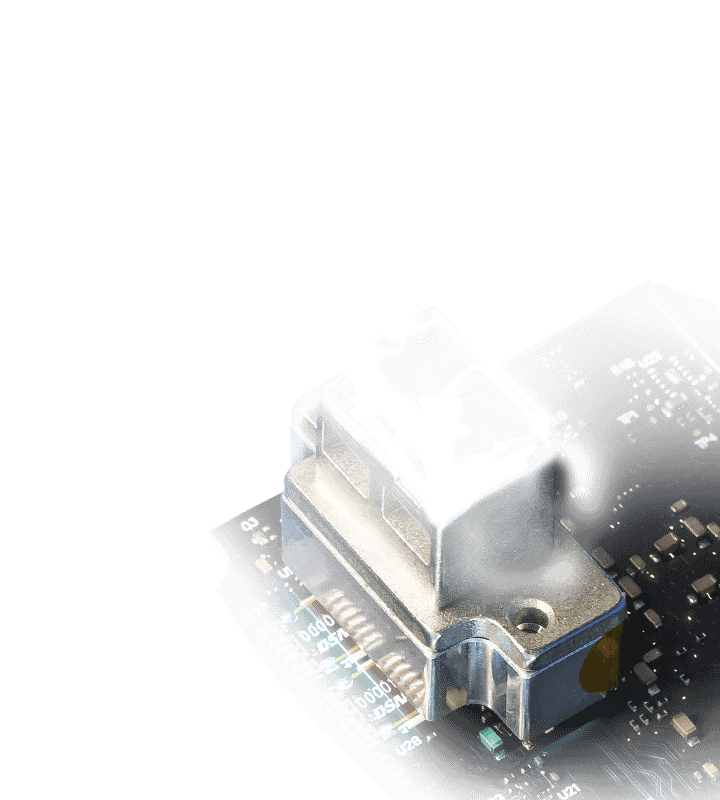

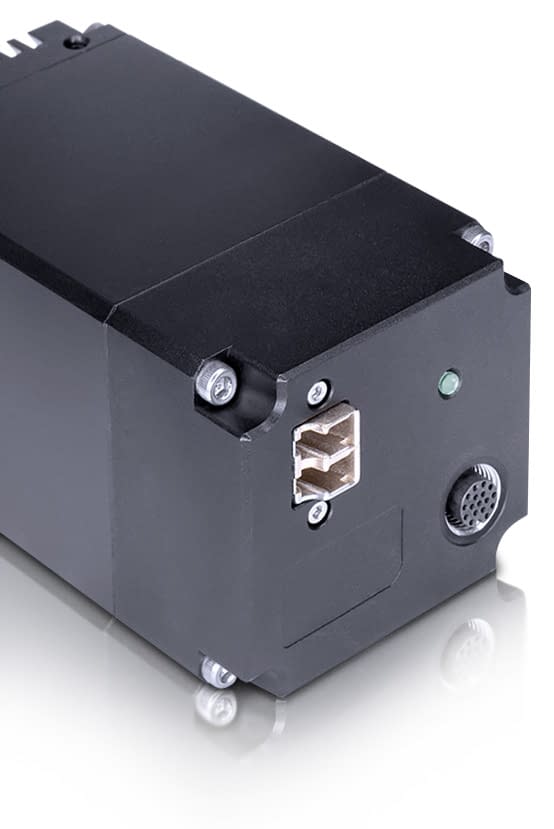

Direct LC Optical Cable Connection

Integrated High Performance Transceiver

The Atlas25 25GigE camera comes with a built-in optical transceiver, eliminating the need for a separate SFP module. Simply connect a dual LC multimode fiber cable and start streaming at full 25 Gigabit speeds. This integrated design reduces system complexity, power consumption, and failure points.

Cost Savings

No external SFP module required on the camera.

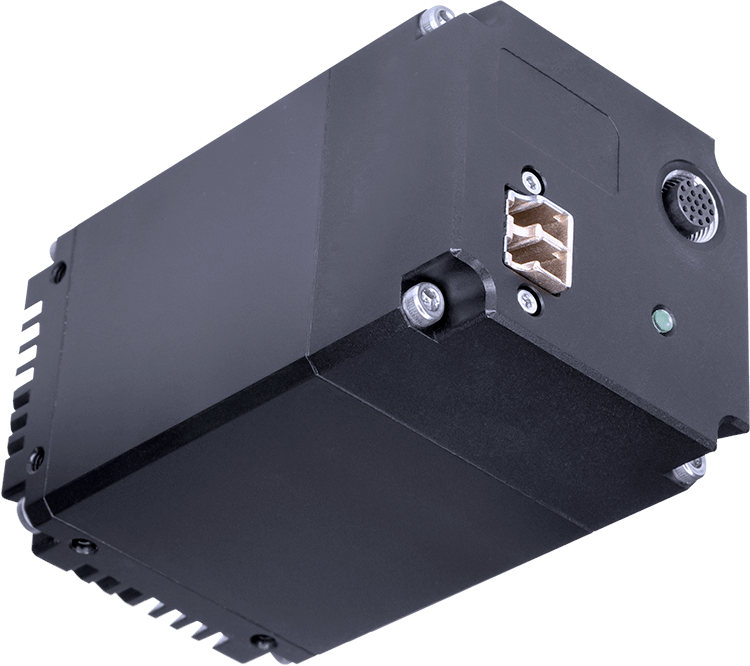

Hassle-Free Connectivity 25GigE RDMA Camera

Simplified Setup

Plug optical cable directly into the camera.

Reliable

Industrial, reliable 25 Gigabit data transmission.

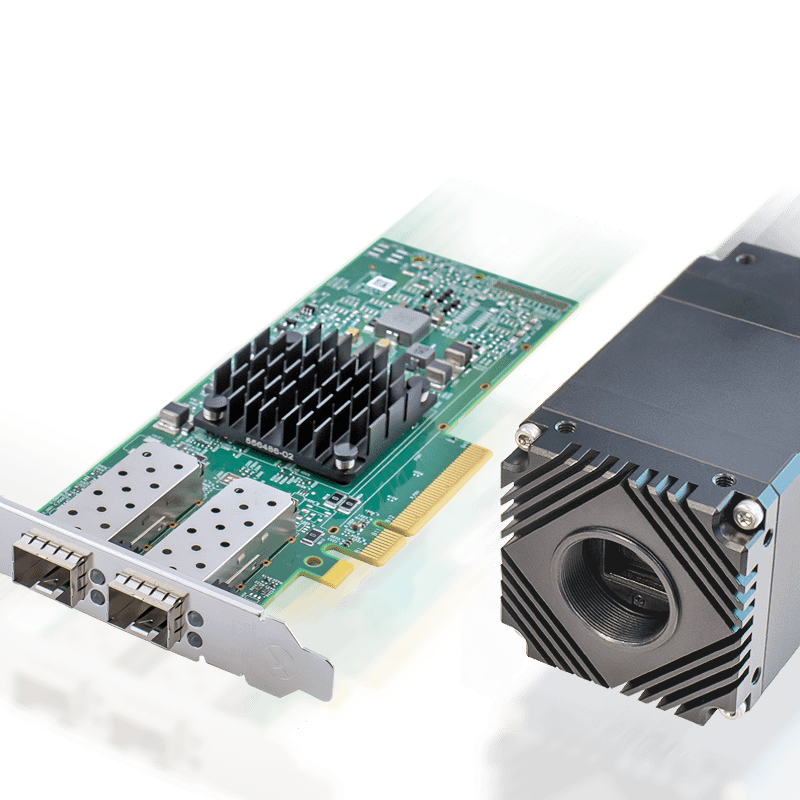

No more CPU bottlenecks. The Atlas25 with RDMA reliably streams 3100 MB/s (25GigE) of data directly to main memory, bypassing the CPU and OS. This increases throughput, lowers latency, and eliminates CPU usage, which is required for reliable multi-25GigE camera applications.

4 x Atlas25 25GigE Cameras, CPU Usage:

With RDMA

0.3%

Without RDMA

9.4%

(Lower is better*)

*Tested on PC with i9-10900X with 128GB (8x16GB) Quad Channel memory. Windows 11 Pro using LUCID RDMA 2-port 25GigE Host Channel Adapter (x2)

Reliable Data Transfers,
Accelerated Performance

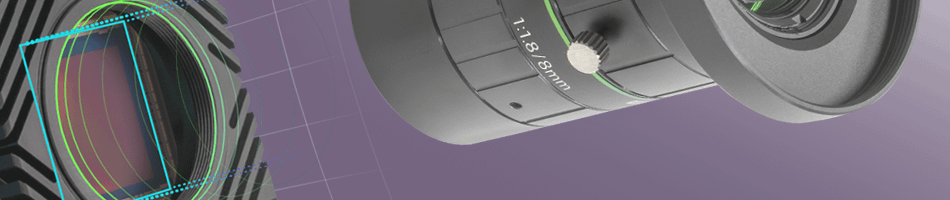

Active Sensor Alignment

Active Sensor Alignment for Triton Camera

Minor discrepancies in sensor tilt and rotation can have a negative impact on imaging, especially if there are sensor alignment differences between camera units. That is why all Atlas25 cameras are actively aligned to minimize sensor tilt and rotation, and to place the center of the image sensor at the lens optical axis. The result is a precisely attached large format sensor that is aligned to the lens mount so that images are sharp and crisp, even in the corners. Learn more about our Active Sensor Alignment process in our tech brief.

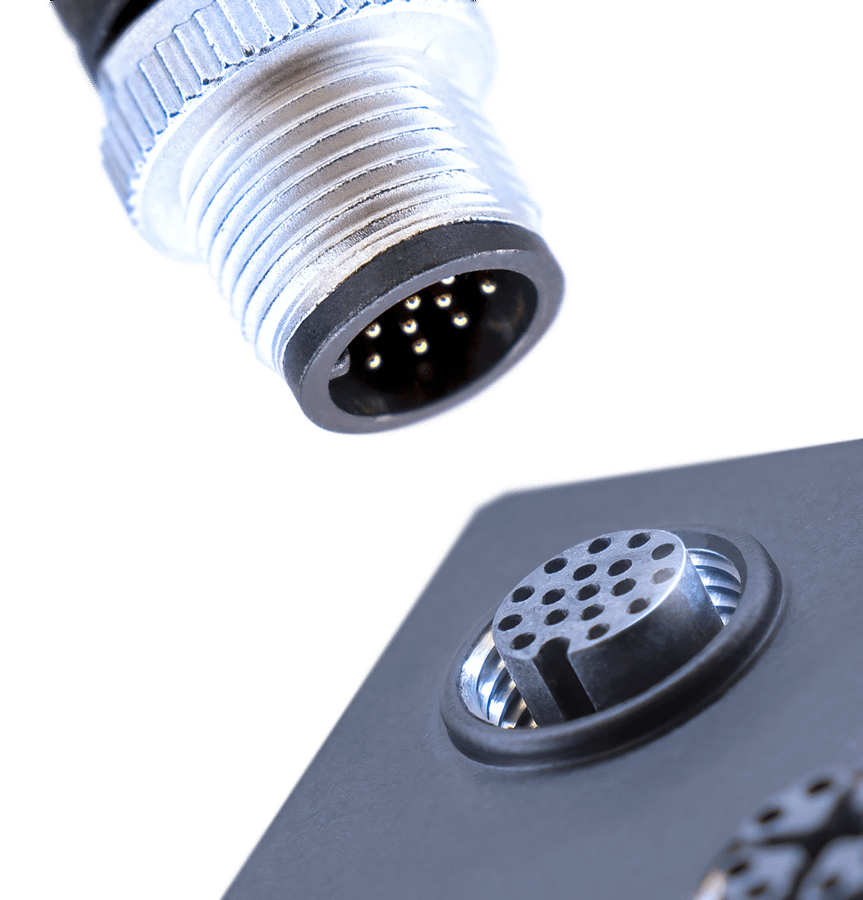

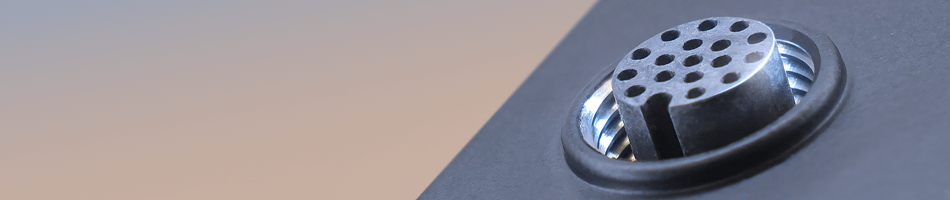

17-Pin GPIO

For Enhanced Camera Control

The Atlas25 25GigE camera features a 17-pin GPIO port for advanced functionality and precise camera control. It includes isolated and non-isolated I/O, power inputs, and RS-422 compliant differential inputs for compatibility with quadrature encoders enabling accurate speed, position, and motion feedback. RS-422 offers long-distance data transmission with strong noise immunity, ideal for demanding industrial environments.

Arena SDK

Welcome to our powerful software development kit called Arena. The Arena SDK is designed from the ground up to leverage the latest in industry standards and software technology. It works fast with less calls to functions and is simpler to use thanks to its modern GUI based on the GenICam standard. In addition, LUCID’s ArenaView GUI capabilities are extended with built-in JupyterLab support, making it more than a simple camera viewer application. ArenaView with built-in JupyterLab provides preconfigured interactive development environment that can be used for testing and documenting all SDK functions and camera performances. Create notebook documents that contain both live Python code, rich text elements, and interactive visualizations, allowing developers to build camera GUIs with live output from the camera stream, all from within ArenaView.

• SDK Includes example code and a robust set of APIs.
• Search for help topics in our easy-to-use HTML5 documentation
• Arena UI toolkit for rapid development of custom GUIs
• ArenaView GUI for viewing and acquiring images.
• JupyterLab on ArenaView provides an interactive development environment using Python

Visit the Arena SDK page to learn more.
