VISION 2026
NEW CAMERAS
At VISION 2026, LUCID showcased its latest GigE Vision cameras and advanced imaging technologies, including line scan, NIR, high-resolution and RGB-D ToF cameras, plus 10GigE and 25GigE cameras with GigE Vision 3.0 RDMA. A key highlight was the new Triton All-In-One, LUCID’s latest IP67 camera family with built-in lens and lighting. Explore the highlights from our booth below.
Industrial Vision Days Video Presentations
Multi-Camera 10GigE Systems with RDMA and Real-Time Synchronization (20 x 10GigE Cameras)
GigE Vision 3.0 with RDMA is now available for high-speed Ethernet cameras, helping overcome CPU bottlenecks in multi-camera applications. How can we take full advantage of this technology? This presentation explores a network reference design featuring 20 × 10GigE cameras that reflects the large-scale systems used by many of our customers. It shows how RDMA, PTP, action commands, and our eTrigger technology work together to support high-speed, synchronized image acquisition.
LUCID GigE Cameras in Agriculture, Farm, and Food Processing Applications
Identifying the key imaging challenge in a food processing application is the first step toward choosing the right camera technology. This presentation explores the main challenges across different stages of food processing and highlights the cameras our customers have used to overcome them in production.
Triton2, Triton, Triton Lite Cameras
High Sensitivity Near-IR (NIR) Sensors

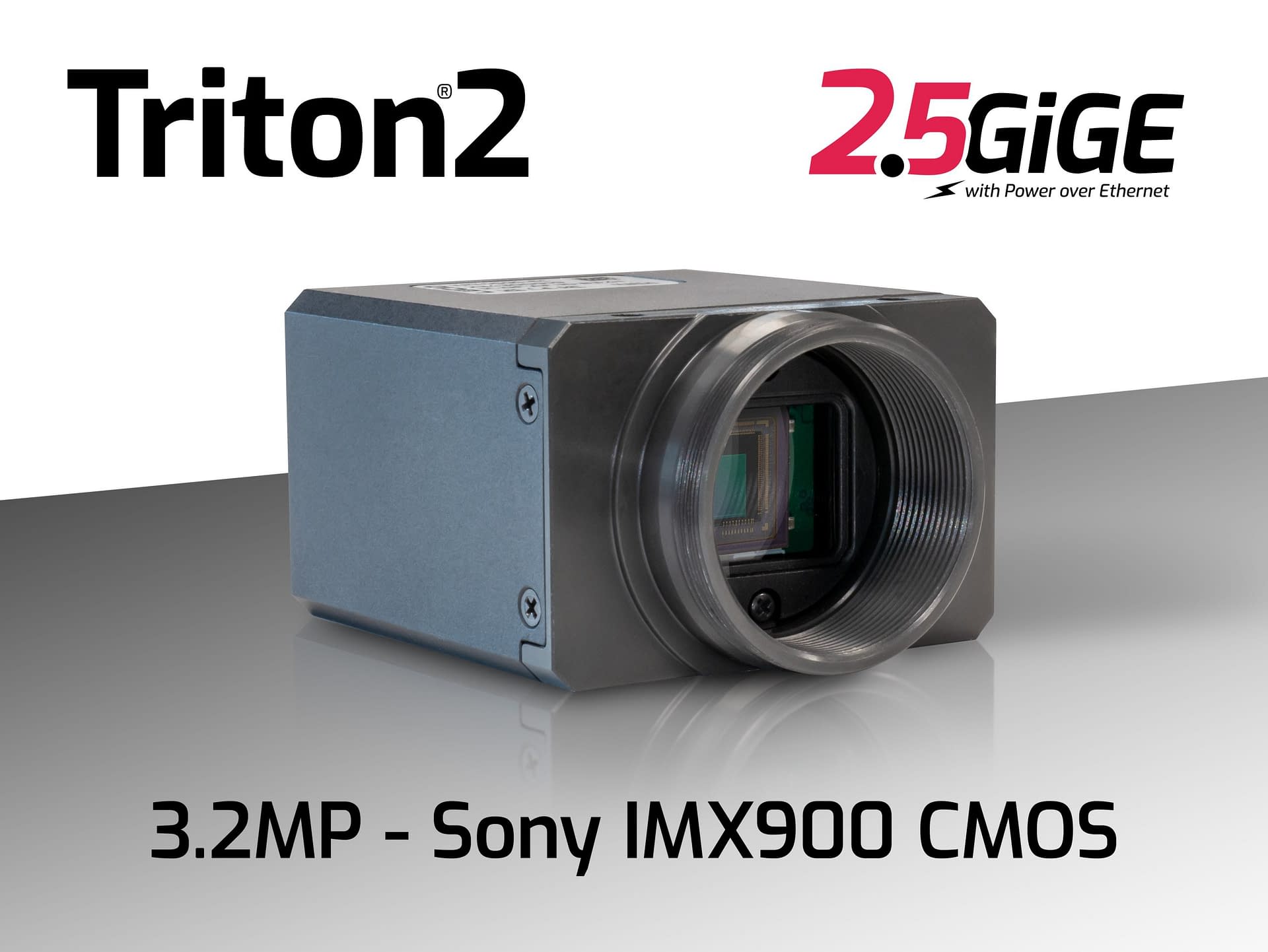

Selected models across LUCID’s Triton, Triton2, and Triton Lite families offer enhanced near-infrared imaging with Gpixel GMAX4002, Sony IMX676, and Sony IMX900 sensors. The GMAX4002 combines NIR sensitivity with global shutter capture, while the IMX676 brings STARVIS 2 sensitivity to high-resolution imaging. The IMX900 offers enhanced NIR response in a compact global shutter sensor. Enhanced NIR sensitivity helps capture details beyond the visible spectrum, improving contrast for material inspection, sorting, and identification under NIR illumination.
| Camera Family | Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Interface |
| Triton2 | TRT024G | 2.4 MP | 2048 x 1200 px | 107.2 fps | Gpixel GMAX4002 CMOS | 1/1.7" | 4.0 µm | Global | C | 2.5GigE M12 |
| Triton | TRI126S | 12.5 MP | 3536 x 3536 px | 22 fps | Sony IMX676 CMOS | 1/1.6" | 2.0 µm | Rolling | C | GigE M12 |
| Triton Lite | TLT034S | 3.2 MP | 2048 x 1536 px | 35 fps | Sony IMX900 CMOS | 1/3.1” | 2.25 µm | Global | C | GigE, RJ45 |
Demo Description: This demo cycled through different target materials to showcase the image quality of three sensors, each with enhanced near-infrared (NIR) sensitivity.
Triton10 - 10GigE RDMA IP67 Camera
8K Line Scan, Compact Size
The Triton10 8K Line Scan camera brings 8K imaging to a compact (44 x 44 x 82 mm) 10GigE camera, reducing the space typically required for 8K line scan cameras. With a TFL lens mount, GigE Vision 3.0 RDMA streaming, PoE, and IP67 protection, it simplifies integration into space-constrained industrial inspection systems. LUCID will also be demonstrating our Triton2 4K line scan camera. Visit Triton10 webpage | Visit Triton2 webpage
| Camera Family | Model | Resolution | Line Rate | Sensor | Format | Pixel Size | Shutter | Lens Mount | Interface |
| Triton10 | TRX08KR | 8192 x 2 px | 55 kHz | RGBIC 8K3U5 | 28.672 mm | 3.5 µm | Global | TFL | 10GigE M12 |
| Triton2 | TRT04KR | 4096 x 2 px | 65 kHz (Mono) 33 kHz (Color) | Gpixel GL3504 CMOS | 14.3 mm | 3.5 µm | Global | C | 2.5GigE M12 |
Demo Description: This line scan demo featured our Triton2 2.5GigE 4K and Triton10 10GigE RDMA 8K cameras streaming to a single PC, with the display periodically switching between the two cameras to highlight differences in resolution and line rate.
Triton All-In-One
Built-In Lens and Illumination
The Triton All-In-One simplifies machine vision integration featuring built-in liquid-lens and illumination with programmable lighting and lens focus controls. Its 3.2 MP Sony IMX900 sensor offers enhanced NIR sensitivity, while 2.5GigE delivers up to 300 MB/s with PoE for simplified cabling. IP67 protection, M12 and M8 connectors, and models with different lens and illumination options support diverse industrial applications. Designed for cost-effective vision, it gives you the flexibility to use your preferred host hardware and vision software. Learn more at the Triton All-In-One webpage.
| Model | MP | Chroma | Resolution | FPS | Focal Length | FoV | Working Distance | Sensor | Shutter | GigE Interface |
| TAO034S-C06W | 3.2 MP | Color | 2048 x 1536 px | 78 fps | 6mm | 42° x 31° | 100mm - ∞ | Sony IMX900 CMOS | Global | 2.5GigE, M12 |
| TAO034S-M06R | 3.2 MP | Mono | 2048 x 1536 px | 78 fps | 6mm | 42° x 31° | 100mm - ∞ | Sony IMX900 CMOS | Global | 2.5GigE, M12 |
| TAO034S-C12W | 3.2 MP | Color | 2048 x 1536 px | 78 fps | 12mm | 22° x 16° | 100mm - ∞ | Sony IMX900 CMOS | Global | 2.5GigE, M12 |
| TAO034S-M12R | 3.2 MP | Mono | 2048 x 1536 px | 78 fps | 12mm | 22° x 16° | 100mm - ∞ | Sony IMX900 CMOS | Global | 2.5GigE, M12 |
Demo Description: Two Triton All-In-One cameras image packages of varying widths and heights. The demo showcases the built-in liquid lens quickly cycling through programmable focus presets, while a sensor connected to the GPIO port triggers the integrated lighting.
Triton10 - 10GigE RDMA IP67 Camera
20 x 10GigE RDMA: 200 Gb/s to GPU
See 20 Triton10 10GigE cameras streaming simultaneously to a single host using GigE Vision 3.0 RDMA, demonstrating zero-copy image transfer directly into GPU-accessible memory. The PTP-synchronized system transfers image data directly into memory, minimizes CPU involvement and avoids unnecessary memory copies, demonstrating a scalable approach to high-throughput inspection and GPU-based image processing. Learn more at the Triton10 webpage.
The demo also introduces eTrigger: Ethernet-based Real-time Synchronization. A hardware trigger received through one camera’s GPIO initiates an action command to the other PTP-synchronized cameras on the network, enabling synchronized capture from a single trigger connection. FPGA-based trigger handling and command transmission provide a fast response without relying on firmware processing.
GPU
GigE Vision 3.0 RDMA enabled
and provide IP67 protection
synchronization for distributed triggering.
Atlas25 25GigE RDMA Camera
105MP Sony IMX937 Sensor
The Atlas25 combines Sony’s 105MP IMX937 global shutter sensor with 25GigE RDMA to deliver 10240 × 10240 px images at 23 FPS. A direct optical connection supports high-bandwidth image transfer, while active sensor alignment ensures precise sensor positioning for demanding high-resolution inspection applications. In addition to the IMX937, other large format global and rolling shutter sensors will be released in the Atlas25 family. Visit the Atlas25 webpage.
| Model | MP | Resolution | FPS | Sensor | Format | Pixel Size | Shutter | Lens Mount | Interface |
| ATV1050S | 105 MP | 10240x10240px | 23 fps | Sony IMX937 CMOS | 2.5” | 2.74 µm | Global | TFL-II | 25GigE, LC Fiber |
| ATV680S | 68 MP | 8248 x 8248 px | 40 fps | Sony IMX938 CMOS | 2.0” | 2.74 µm | Global | TFL-II | 25GigE, LC Fiber |
| ATV610S | 61 MP | 9568 x 6380 px | 21 fps | Sony IMX455 CMOS | 2.7” | 3.76 µm | Rolling | TFL-II | 25GigE, LC Fiber |
| ATV508S | 50 MP | 8192 x 6144 px | 55 fps | Sony IMX939 CMOS | 2.8” | 2.74 µm | Global | TFL-II | 25GigE, LC Fiber |
The Atlas25 – 25GigE camera will show fine details of a wafer captured by the 105 MP Sony IMX937 sensor.
Demo Description: The Atlas25’s TFL-II lens mount connects to a telecentric lens with integrated lighting via a TFL-II to F-mount adapter. The demo digitally zooms into the 105 MP wafer image to showcase the fine detail captured by the sensor.
Atlas10 SWIR 10GigE RDMA IP67 Camera
Multispectral SWIR - 5.2MP Sony IMX992
See the Atlas10 5.2 MP SWIR camera demonstrate multispectral imaging with synchronized ringlight and backlight illumination. Sequenced narrowband lighting captures the target at different wavelengths, combining reflected and transmitted light information to reveal material differences and features beyond conventional visible-light imaging. Learn more about our SWIR cameras.
| Model | MP | Resolution | FPS | Sensor | Shutter | Lens Mount | GigE Interface |
| ASX053S-WC | 5.2 MP | 2560 x 2048 px | 119.6 fps | Sony IMX992 InGaAs | Global | C | 10GigE, M12 |
| ASX033S-WC | 3.2 MP | 2048 x 1536 px | 158.7 fps | Sony IMX993 InGaAs | Global | C | 10GigE, M12 |
Demo Description: This SWIR demo cycles through toothpaste tubes, a silicon wafer, a gummy candy package, and RFID cards. Paired with narrowband lighting, the Atlas10 SWIR camera reveals internal features hidden from view under visible light.
The demo will highlight both the pre-calibrated RGB + 3D depth data of the Helios2 Chroma combined with the vision processing of the open source Point Cloud Library (PCL)

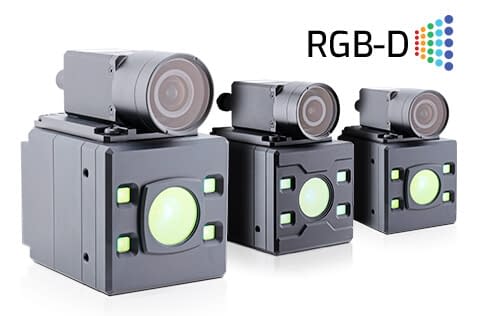

Helios2 / Helios2 Chroma Time-of-Flight Cameras
RGB+D IP67 3D Cameras, Live Dimensioning
See the Helios2 Chroma RGB-D camera combine color and 3D depth imaging in a live dimensioning demonstration. Using the open-source Point Cloud Library (PCL), the application identifies surfaces and overlays dimensions, depth measurements, and bounding boxes on the point cloud. The demo highlights how the Helios2 3D IP67 cameras can support package measurement and spatial analysis for logistics and industrial automation, with RGB color providing additional visual context. Learn more at the Helios2 webpage.
| Models | P/N | Camera Components |
| View All Chroma Models | HTP-RGB-001- Helios2+ Chroma | Helios2+ (HTP003S-001) & Triton (TRI032S) with lens and IP67 lens tube. |
| HLT-RGB-001 - Helios2 Chroma | Helios2 (HLT003S-001) & Triton (TRI032S) with lens and IP67 lens tube. | |
| HTW-RGB-001 - Helios2 Wide Chroma | Helios2 Wide (HTW003S-001) & Triton (TRI122S) with lens and IP67 lens tube. | |
| HTR-RGB-001 - Helios2 Ray Chroma | Helios2 Ray (HTR003S-001) & Triton (TRI032S) with lens and IP67 lens tube. |
