M12 GPIO 17-pin (Amphenol) 3.0m Cable

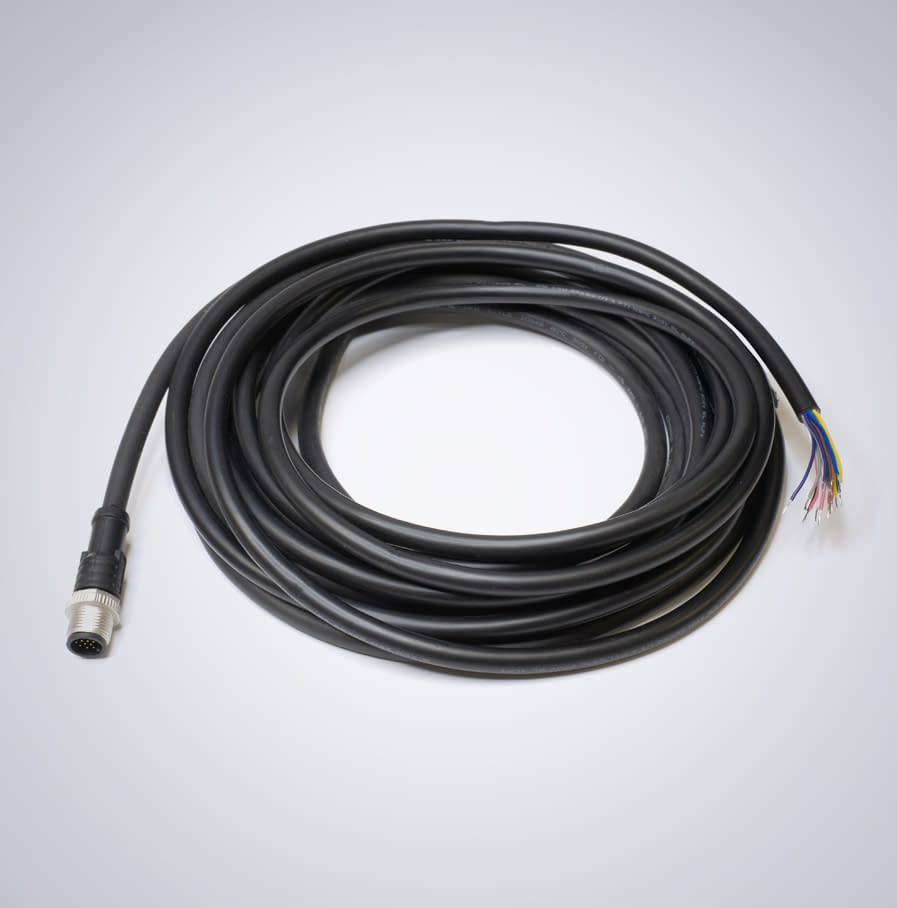

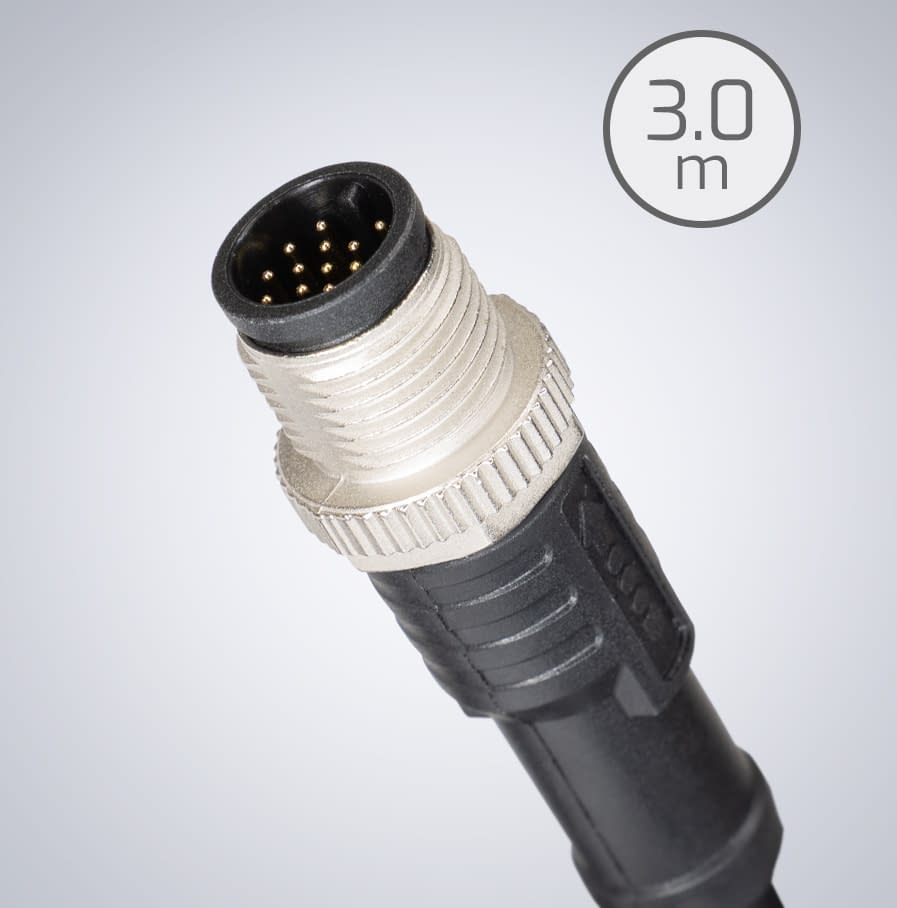

The 17-pin GPIO cable (P/N: GPIO-M12-3M-A) is 3 m long and is terminated with a 17-pin M12 connector plug on one end. The other end is pre-stripped to 5 mm for soldering or direct connection to a terminal block. App Note: Using GPIO On LUCID Cameras (GPIO Pin Mapping, Function, and Trigger Control)
For shipments entering the U.S: A copper tariff applies to this product. This tariff is not calculated at checkout. A LUCID sales representative will contact you after purchase to arrange the copper tariff charge. Please refer to the Tariff section of the Terms and Conditions.
Specifications
| Connector Type | M12 17pin Male Connector (IEC-61076-2-101) |
|---|---|
| IP Rating | M12 connector is IP68 |
| Length | 3.0 m (9.84 ft) |
| Wire Layout | 17 Stranded wires: Red 1 Brown 2 Orange 3 Purple 4 Black 5 Blue 6 Yellow 7 Green 8 Pink 9 Grey 10 White 11 Green/White 12 Yellow/White 13 Brown/White 14 Purple/White 15 Grey/White 16 Pink/White 17 |
| AWG Rating | 26AWG |
| Operating Temperature | -5°C to 105°C |
USD $70.00
