M12 GPIO 17-pin (Amphenol) 1.0m Cable

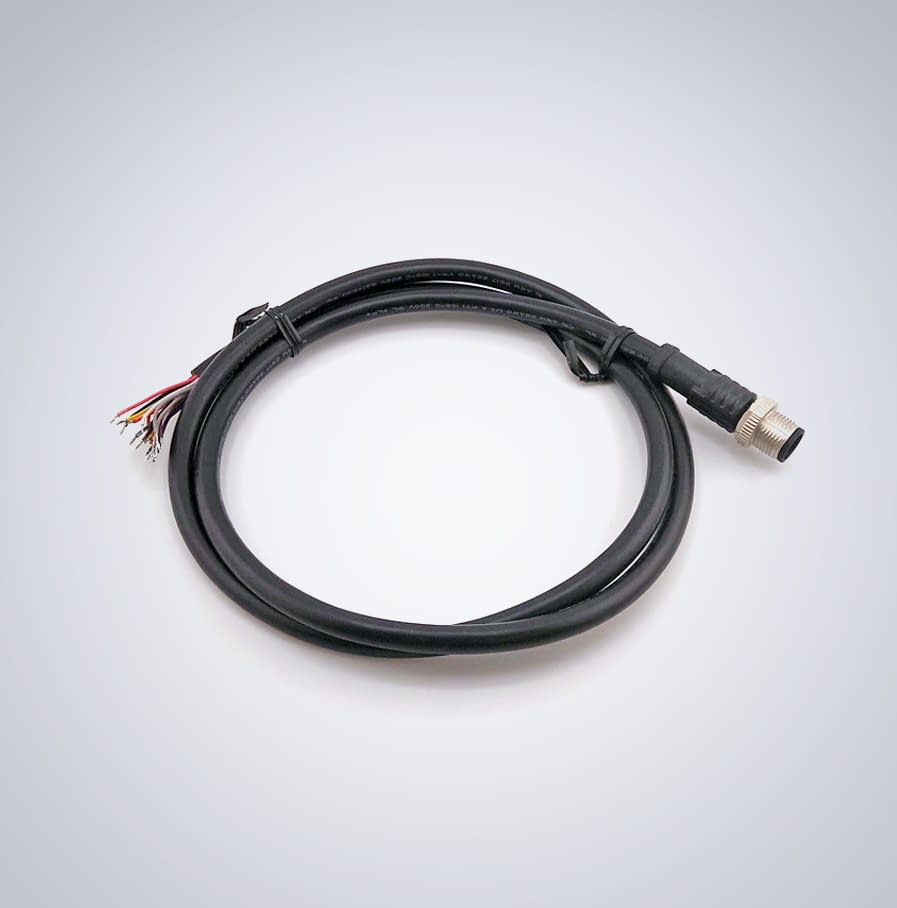

The 17-pin GPIO cable (P/N:GPIO-M12-1M-A) is 1 m long and is terminated with a 17-pin M12 connector plug on one end. The other end is pre-stripped to 5 mm for soldering or direct connection to a terminal block. App Note: Using GPIO On LUCID Cameras (GPIO Pin Mapping, Function, and Trigger Control)
For shipments entering the U.S.: A copper tariff applies to this product. This tariff is added at checkout and is calculated based on the amount of copper in the product. Please refer to the Tariff section of the Terms and Conditions for more information.
Specifications
| Connector Type | M12 17-pin Male Connector (IEC-61076-2-101) |
|---|---|
| IP Rating | M12 connector is IP68 |
| Length | 1.0m (3.28 ft) |
| Wire Layout | 17 Stranded wires: Red 1 Brown 2 Orange 3 Purple 4 Black 5 Blue 6 Yellow 7 Green 8 Pink 9 Grey 10 White 11 Green/White 12 Yellow/White 13 Brown/White 14 Purple/White 15 Grey/White 16 Pink/White 17 |
| AWG Rating | 26AWG |
| Operating Temperature | -5°C to 105°C |
USD $45.00
Register or login for pricing
