3D+RGB IP67 Kit (Helios2 / Helios2+ / Helios2 Ray & Triton 3.2MP Kit)

소니의 3D + RGB IP67 키트는 정확한 컬러 포인트 클라우드를 위해 Triton 3.2MP와 Helios2 ToF 3D 카메라를 결합한 제품입니다. Triton 3.2MP는 Helios2 3D 깊이 데이터에 컬러 정보를 추가합니다. 이 키트에는 방진 및 방수 컬러 3D 이미징을 구현하는 데 필요한 모든 것이 포함되어 있습니다.

조립이 필요합니다. 조립 지침은 아래의 “시작하기/조립 지침” 탭을 참조하십시오.

키트 SKU 기술
HTP-TRI-KIT001 3D+RGB IP67 키트(Helios2+ HTP003S-001 포함)
HLT-TRI-KIT001 3D+RGB IP67 키트(Helios2 HTP003S-001 포함)
HTR-TRI-KIT001-NA Helios2 Ray (HTR003S-001) 및 북미 전원 어댑터가 포함된 3D+RGB IP67 키트
HTR-TRI-KIT001-EU Helios2 Ray (HTR003S-001) 및 EU 전원 어댑터가 포함된 3D+RGB IP67 키트
HTR-TRI-KIT001-AU Helios2 Ray (HTR003S-001) 및 호주 전원 어댑터가 포함된 3D+RGB IP67 키트
HTR-TRI-KIT001-UK Helios2 Ray (HTR003S-001) 및 영국 전원 어댑터가 포함된 3D+RGB IP67 키트

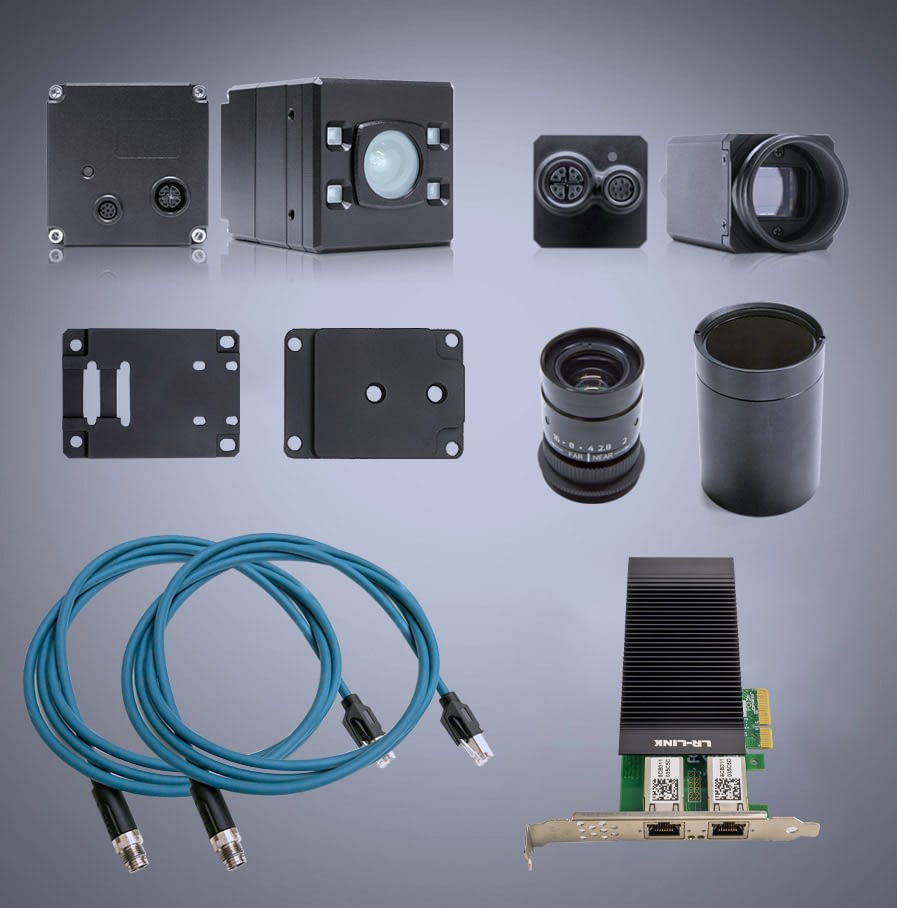

패키지에 포함된 것:
모델 SKUs 수량 기술
HTP003S-001 또는 HLT003S-001 또는 HLT003S-001 1 Helios2+, Helios2 또는 Helios2 Ray Time-of-Flight 3D 카메라 중에서 선택하세요.
TRI032S-CC 1 Triton 3.2MP Color Camera, IP67, 2048 x 1536 px, 32 FPS, M12 GigE
UC060-5M 1 Universe Compact C-Mount Lens 5MP 2/3″ 6mm (Manufacturer P/N: BL060C)
IPTC-D270L346 1 IP67 C-마운트 렌즈 튜브, 내부 ⌀: 27mm, 내부 길이: 34.6mm
HLT-TRI-MNT 1 Triton to Helios2 mounting bracket with 8 screws (4x M4 and 4x M3 with washers)
ATL-TR 1 Helios2 삼각대 어댑터 (M4 장착 나사 4개)
CAB-MR-2M-A 2 M12 – RJ45 IP67 Cat6a 케이블 (Amphenol) – 2.0m, 짙은 녹색
PCIE-POE2-LR 1 LR-LINK 2-CH PCIe GigE Vision PoE+ 이더넷 네트워크 어댑터
M8P-US1/EU1/AU1/UK1 1 M8 GPIO AC 어댑터 전원 공급 장치(NA/EU/AU/UK) (Helios2 Ray RGB 키트에만 해당)

키트를 선택하십시오:

SKU: N/A 카테고리:

사양서

카메라별 사양은 Helios2+, Helios2, Helios2 RayTriton 3.2MP 제품 페이지를 참조하십시오..

성능 데이터

카메라별 성능 데이터는 Helios2+Helios2, Helios2 RayTriton 3.2MP 제품 페이지를 참조하십시오.

도면

3D + RGB IP67 키트 카메라 도면(Helios2+와 Helios2는 기계적으로 동일합니다)

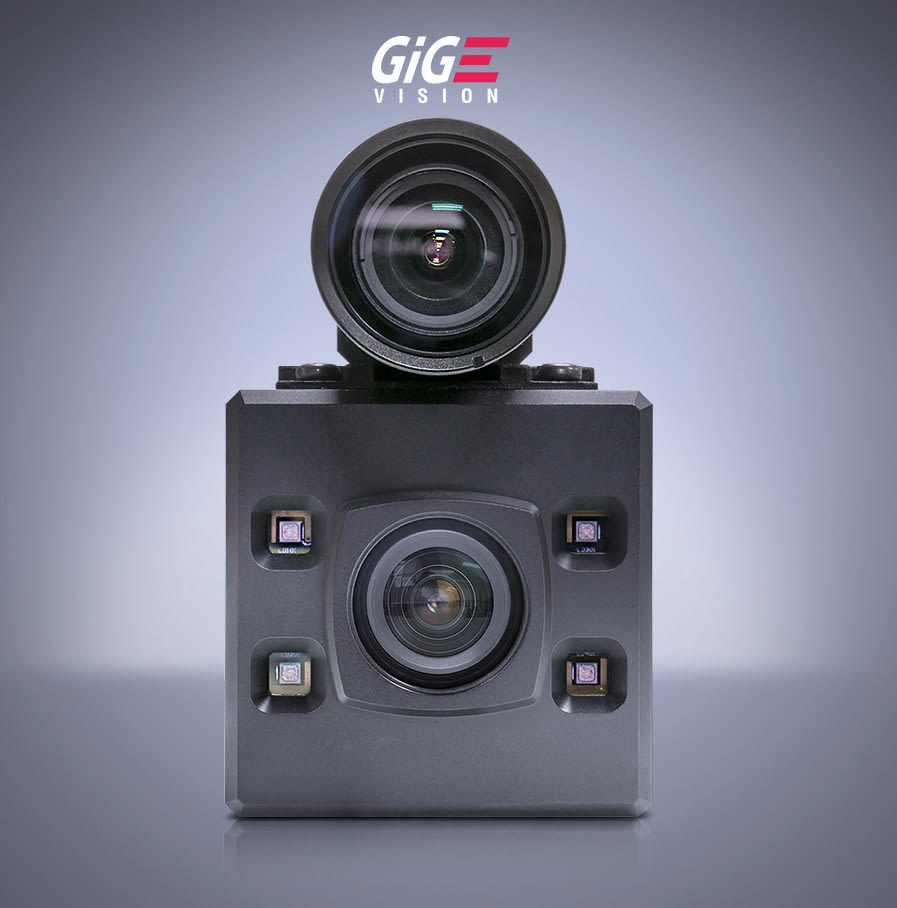

Helios2 and triton camera kit (RGB+3D)

시작하기 / 조립 지침

Getting Started Guides

For help creating a custom application with this
kit visit our App Note:
Add RGB Color To Helios 3D Point Cloud.

This App Note is applicable for both Helios and Helios2, along with any other LUCID color camera (Phoenix, Triton, or Atlas)

For instructions on using this kit with ArenaView visit our KB Article:
Using LUCID’s 3D + RGB IP67 Kit in ArenaView.

Please note this KB Article is only applicable for the Helios2 and Triton 3.2MP color camera, this will not work with the original Helios.

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation for Triton and Helios2

RGB+3D Kit Instructions Helios2 Triton camera

부속품

Note: This kit already includes the following accessories: lens, IP67 lens tube, Triton to Helios2 mounting bracket, 2m M12 Cat6a cables (2 units), and 2-CH PCIe GigE Vision PoE+ Card. To add addition accessories, please see below or visit our accessories page
Cables for Helios ModelsManufacturer Part #LUCID Part #Subject to 25% US import tariff?
(US customers only)
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green LUCID CAB-MR-2M-ACAB-MR-2M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green LUCID CAB-MR-5M-ACAB-MR-5M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark GreenLUCID CAB-MR-15M-ACAB-MR-15M-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m LUCID CAB-MR-5M-RA1-ACAB-MR-5M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m LUCID CAB-MR-15M-RA1-ACAB-MR-15M-RA1-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m LUCID CAB-MR-5M-RA2-ACAB-MR-5M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m LUCID CAB-MR-15M-RA2-ACAB-MR-15M-RA2-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas/Helios Side] – 5m LUCID CAB-MR-5M-RA3-ACAB-MR-5M-RA3-ANo
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas/Helios Side] – 15m LUCID CAB-MR-15M-RA3-ACAB-MR-15M-RA3-ANo
M8 GPIO 8-pin (Amphenol) 1.0m CableLUCID GPIO-M8-1M-AGPIO-M8-1M-ANo
M8 GPIO 8-pin (Amphenol) 5.0m CableLUCID GPIO-M8-5M-AGPIO-M8-5M-ANo
M8 GPIO 8-pin (Amphenol) 15.0m CableLUCID GPIO-M8-15M-AGPIO-M8-15M-ANo
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA1-AGPIO-M8-5M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA1-AGPIO-M8-15M-RA1-ANo
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -5.0m LUCID GPIO-M8-5M-RA2-AGPIO-M8-5M-RA2-ANo
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -15.0m LUCID GPIO-M8-15M-RA2-AGPIO-M8-15M-RA2-ANo
Tripod Mount Adapter & Misc
Helios2 Tripod AdapterATL-TRATL-TRNo
M8 GPIO IP67 Low Profile CapCAP-M8-ACAP-M8-ANo
PoE+ Interface Cards, Power Supply
NOTE: The Helios2/2+ requires a IEEE 802.3at (PoE+) compliant interface card or injector for proper operation. The Helios2 Wide is NOT PoE and requires GPIO power supply.
LR-LINK PCIe GigE Vision PoE+ CardLR-LINK LRES2001PT-POEPCIE-POE1-LRYes
2-CH PCIe GigE Vision PoE+ CardLR-LINK LRES2002PTPCIE-POE2-LRYes
4-CH PCIe 2.5G/1G, GigE Vision PoE+ Cardioi GE2PX4-PCIE4XE301PCIE-POE4-2GNo
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)MEAN WELL GST60A18-P1JM8P-US1, M8P-EU1, M8P-AU1Yes
