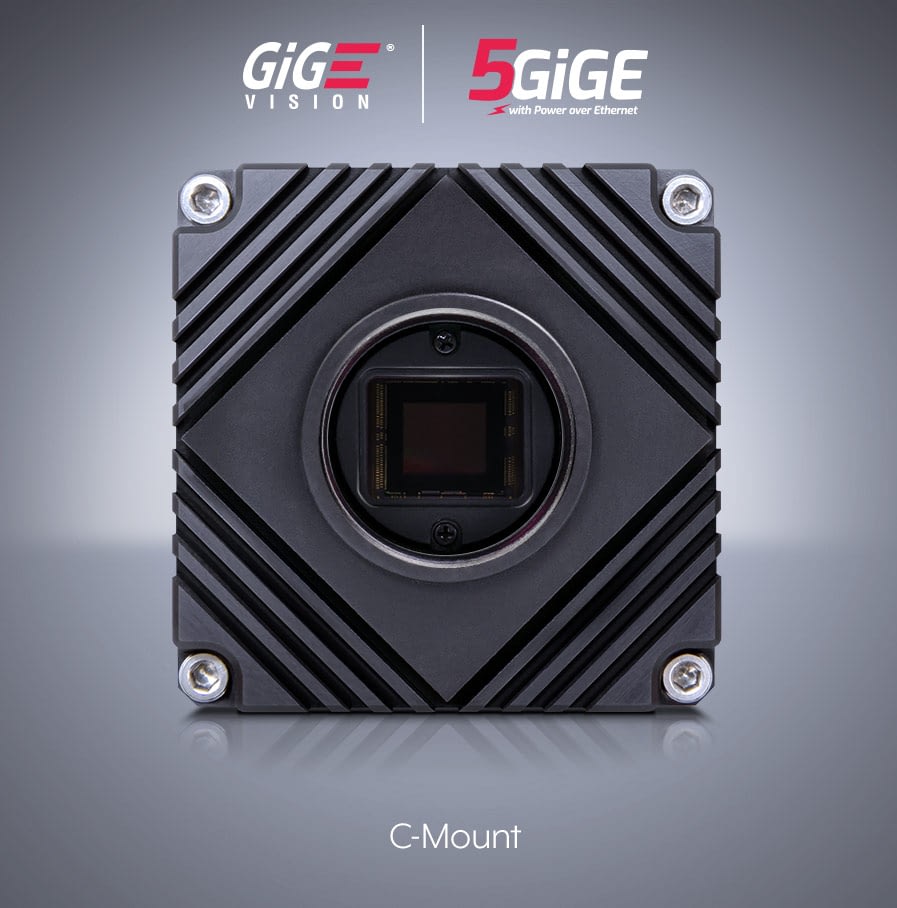

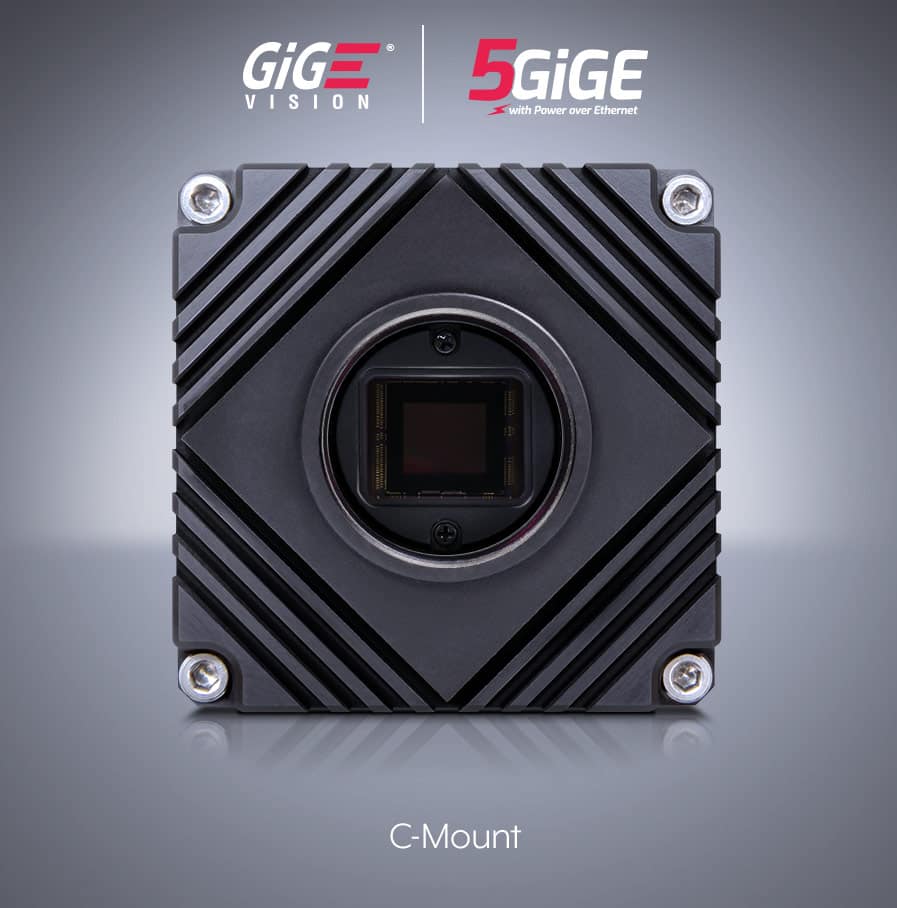

Atlas 5.0 MP Model

센서
Sony IMX250 CMOS
해상도
5.0 MP 2448 x 2048 px
프레임 레이트
98 FPS
모델 크로마 렌즈 마운트 5GBASE-T GigE Vision 커넥터
ATL050S-CC Color C-mount M12
ATL050S-MC Mono C-mount M12

카메라 구성을 선택하십시오:

SKU: N/A 카테고리:

사양서

센서특성
센서 Sony IMX250 CMOS
셔터 Global Shutter
센서 크기 11.0 mm (Type 2/3″)
해상도 2448 x 2048 px, 5.0 MP
픽셀 크기 3.45 µm (H) x 3.45 µm (V)
프레임 레이트 98 FPS @ 5.0 MP (8 Bit ADC mode)
80 FPS @ 5.0 MP (10 Bit ADC mode)
68 FPS @ 5.0 MP (12 Bit ADC mode)
외관
제품 사이즈 55 x 55 x 70 mm
렌즈 마운트 C-Mount
무게 240 g
인터페이스 및 전원 정보
디지털 인터페이스 5GBASE-T (5GigE), 2.5GBASE-T, 1000BASE-T, 100BASE-TX
M12, PoE
GPIO인터페이스 8 핀M8커넥터
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
전원 요구사항 PoE (IEEE 802.3af), or 12-24 VDC external
소비 전력 PoE를 통한 8W, 외부 전원 공급시 7W
이미징 속성
메모리 380 MB
이미지 처리 Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
픽셀 형식 Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
이미지 모드 수평 및 수직 비닝, 서브 샘플링, ROI, 수평 및 수직 뒤집기
ADC 8, 10, 12 bit
Gain범위 0 dB ~ 48 dB 아날로그 및 디지털
노출 시간 30 μs to 10 s
카메라 기능
User Sets 1 default and 2 custom user set
File System Size 16 MB
Chunk Data Frame counter, offset X/Y, width/height, 노출 시간, gain, black level, line status, sequencer set
Event Data Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer 2 counters and 2 timers
Sequencer 노출 시간, gain
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
표준 및 인증
표준 GigE Vision v2.0
응낙 CE, FCC, RoHS, REACH, WEEE
보관 온도 -30 to 60°C
동작 온도 -20 to 55°C 주변
습도 동작: 20% ~ 80%, relative, 비 응축
충격 및 진동 DIN EN 60068-2-27, DIN EN 60068-2-64
보증 3 year

EMVA 1288 데이터

ATL050S EMVA 1288 results.
Interactive graphs – please hover over the points in the graph to reveal QE %

ATL050S-M (Mono, Sony IMX250 CMOS)
Mono EMVA 1288 Results
Dynamic Range 71.6 dB
SNR (Max) 40.25 dB
Saturation Capacity 10590 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.07 γ
Temporal Dark Noise 2.15 e-
Gain 0.37 DN / e-
Dark Current 3.15 e- / s
Dark Signal Non-Uniformity 0.65 e-
Photo Response Non-Uniformity 0.7 %
Linearity Error Max/Min 0.25/-0.34 %
ATL050S-C (Color, Sony IMX250 CMOS)
Color EMVA 1288 Results
Dynamic Range 71.52 dB
SNR (Max) 40.18 dB
Saturation Capacity 10416 e-
Absolute Sensitivity Threshold (Measured at 527.5nm) 4.47 γ
Temporal Dark Noise 2.15 e-
Gain 0.37 DN / e-
Dark Current 4.26 e- / s
Dark Signal Non-Uniformity 0.77 e-
Photo Response Non-Uniformity 0.65 %
Linearity Error Max/Min 0.24/-0.33 %

emva-1288-logo

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

도면

Atlas TFL-Mount / C-Mount Drawings
Atlas 5Gbase-t Camera Drawings

시작하기 / 다운로드

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation

부속품

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.
