Name: Atlas 12.3 MP Model
SKU: 83097
Price: 2795.00 USD
Availability: InStock

Atlas 12.3 MP Model

센서
Sony IMX253 CMOS

해상도
12.3 MP 4096 x 3000 px

프레임 레이트
42.5 FPS

모델	크로마	렌즈 마운트	5GBASE-T GigE Vision 커넥터
ATL120S-CC	Color	C-mount	M12
ATL120S-MC	Mono	C-mount	M12

카메라 구성을 선택하십시오:

사양서

센서특성
센서	Sony IMX253 CMOS
셔터	Global Shutter
센서 크기	17.6mm (Type 1.1″)
해상도	4096 x 3000 px, 12.3 MP
픽셀 크기	3.45 µm (H) x 3.45 µm (V)
프레임 레이트	42.5 FPS @ 12.3 MP (8 Bit ADC mode) 34.5 FPS @ 12.3 MP (10 Bit ADC mode) 29.1 FPS @ 12.3 MP (12 Bit ADC mode)

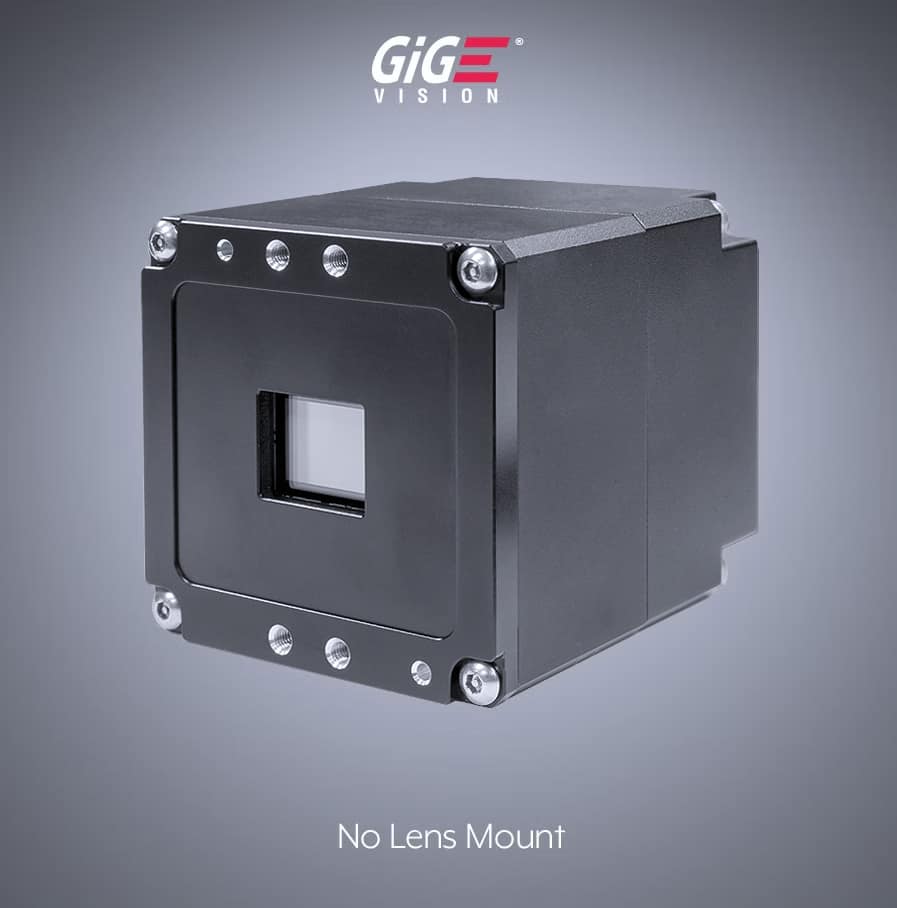

외관

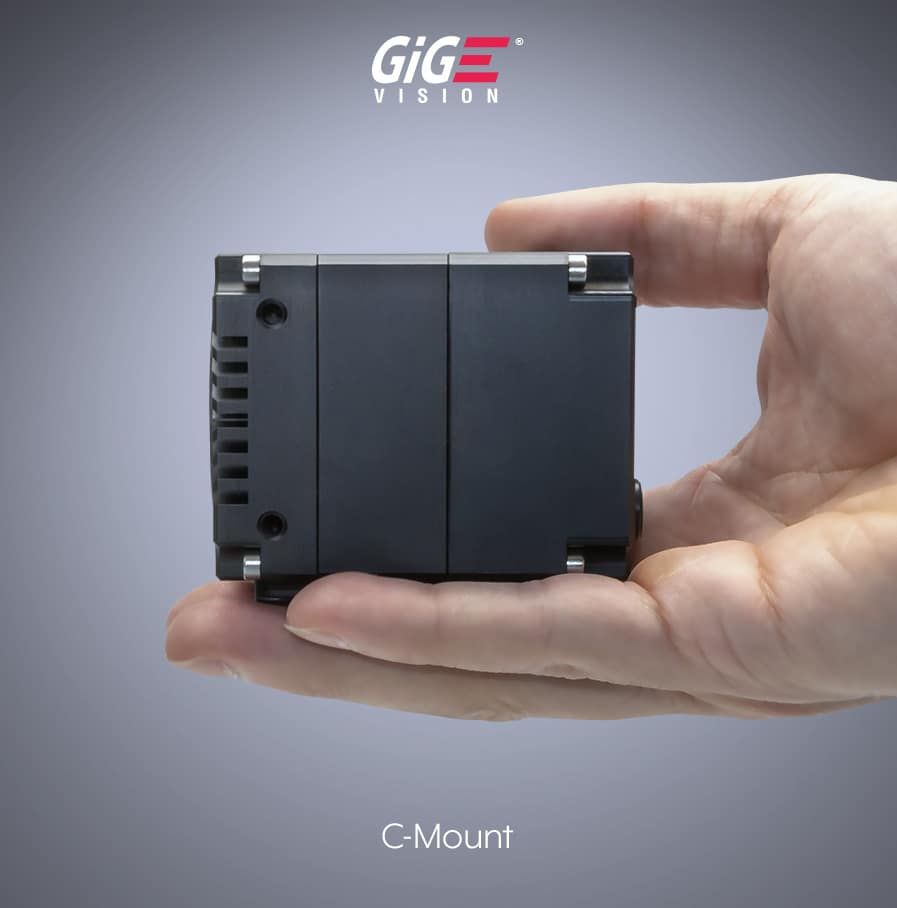

제품 사이즈	55 x 55 x 70 mm

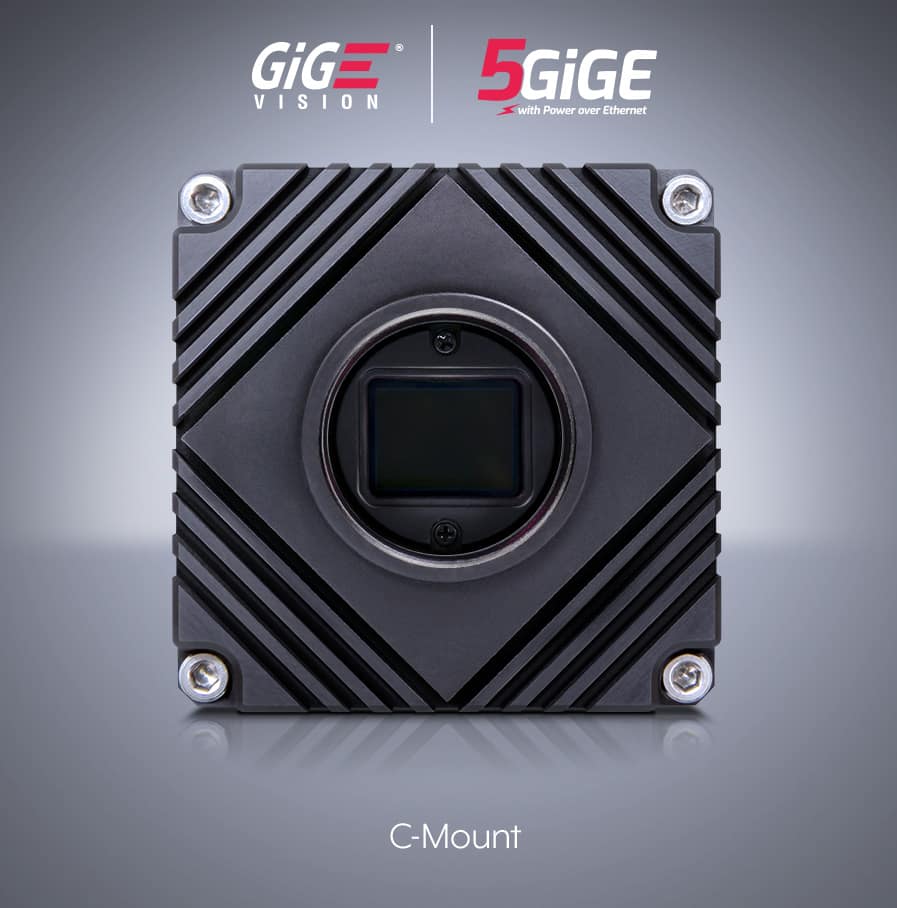

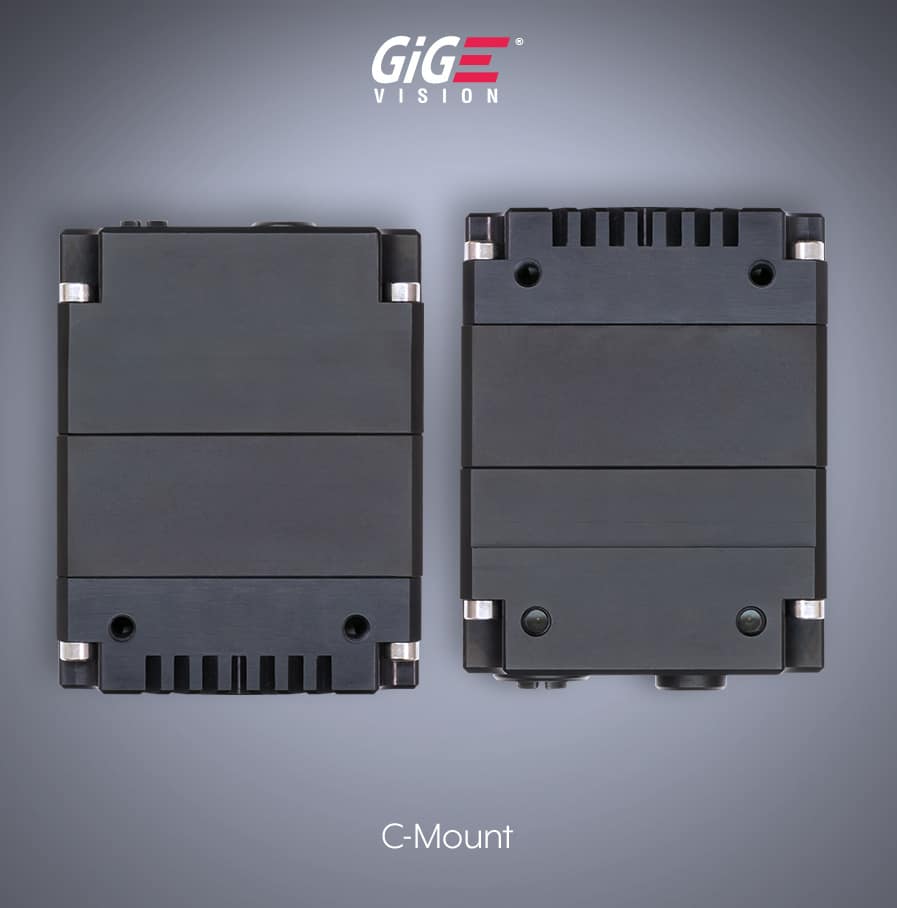

렌즈 마운트	C-Mount
무게	240 g

인터페이스 및 전원 정보

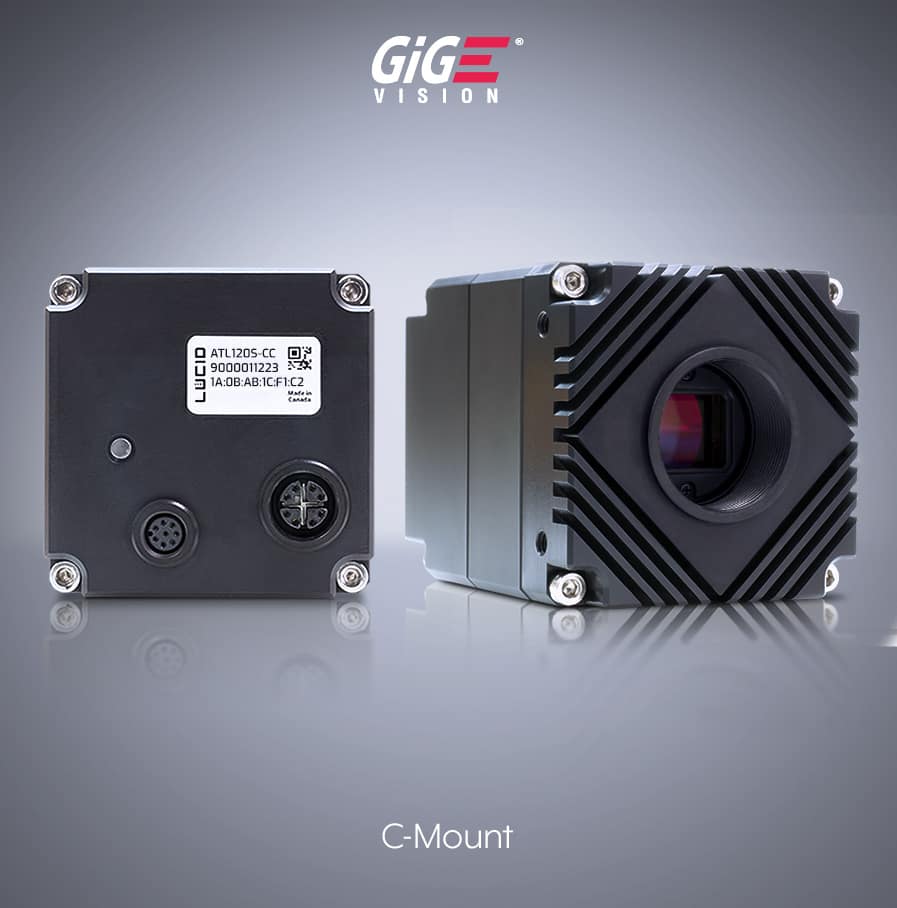

디지털 인터페이스	5GBASE-T (5GigE), 2.5GBASE-T, 1000BASE-T, 100BASE-TX M12, PoE
GPIO인터페이스	8 핀M8커넥터
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
전원 요구사항	PoE (IEEE 802.3af), or 12-24 VDC external
소비 전력	PoE를 통한 8W, 외부 전원 공급시 7W

이미징 속성
메모리	380 MB
이미지 처리	Gain, gamma, black level, white balance, LUT, CCM, pixel correction, hue, saturation, color space conversion
픽셀 형식	Mono8/10/12/16, Bayer8/10/12/16, RGB8, BGR8, YCbCr8, YCbCr411, YUV422, YUV411
이미지 모드	수평 및 수직 비닝, 서브 샘플링, ROI, 수평 및 수직 뒤집기
ADC	8, 10, 12 bit
Gain범위	0 dB ~ 48 dB 아날로그 및 디지털
노출 시간	25.4 μs to 10 s (Normal) / 1 μs to 16 μs (Short Mode)

카메라 기능
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Frame counter, offset X/Y, width/height, 노출 시간, gain, black level, line status, sequencer set
Event Data	Acquisition start/end, exposure start/end, line rise/fall, error
Counter & Timer	2 counters and 2 timers
Sequencer	노출 시간, gain
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

표준 및 인증
표준	GigE Vision v2.0
응낙	CE, FCC, RoHS, REACH, WEEE
보관 온도	-30 to 60°C
동작 온도	-20 to 55°C 주변
습도	동작: 20% ~ 80%, relative, 비 응축
충격 및 진동	DIN EN 60068-2-27, DIN EN 60068-2-64
보증	3 year

EMVA 1288 데이터

ATL120S EMVA 1288 results.
Interactive graphs – please hover over the points in the graph to reveal QE %

ATL120S-M / ATP120S-M(Mono, Sony IMX253 CMOS)

Mono EMVA 1288 Results
Dynamic Range	71.2 dB
SNR (Max)	40.1 dB
Saturation Capacity	10223 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	3.96 γ
Temporal Dark Noise	2.18 e-
Gain	0.38 DN / e-
Dark Current	2.99 e- / s
Dark Signal Non-Uniformity	0.77 e-
Photo Response Non-Uniformity	0.76 %
Linearity Error Max/Min	0.33/-0.26 %

ATL120S-C / ATP120S-C (Color, Sony IMX253 CMOS)

Color EMVA 1288 Results
Dynamic Range	71.2 dB
SNR (Max)	41.15 dB
Saturation Capacity	10343 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	4.44 γ
Temporal Dark Noise	2.22 e-
Gain	0.37 DN / e-
Dark Current	3.74 e- / s
Dark Signal Non-Uniformity	0.73 e-
Photo Response Non-Uniformity	0.82 %
Linearity Error Max/Min	0.34/-0.26 %

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

도면

Atlas TFL-Mount / C-Mount Drawings

시작하기 / 다운로드

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:

Connect your camera for the first time
Download and install Arena SDK or 3rd party software
Enable Jumbo Frames on the Host PC and Camera
Assign camera IP address
Update camera firmware

Downloads

Visit our Downloads Page for access to:

Arena SDK (Arena View, APIs, Examples)
3D CAD drawings (.step files)
Camera firmware files
Technical Documentation

부속품

Tripod adapters, lenses, cables, and Power Over Ethernet (PoE) Ethernet injectors / interface cards are sold separately. Please note that Ethernet ports on most consumer motherboards and laptops do not support PoE. Visit our Accessories page for complete details on all accessories.

Cables for Atlas Models			Subject to 25% US import tariff? (US customers only)
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 2.0m, Dark Green	LUCID CAB-MR-2M-A	CAB-MR-2M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 5.0m, Dark Green	LUCID CAB-MR-5M-A	CAB-MR-5M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) – 15.0m, Dark Green	LUCID CAB-MR-15M-A	CAB-MR-15M-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 5m	LUCID CAB-MR-5M-RA1-A	CAB-MR-5M-RA1-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Down] – 15m	LUCID CAB-MR-15M-RA1-A	CAB-MR-15M-RA1-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 5m	LUCID CAB-MR-5M-RA2-A	CAB-MR-5M-RA2-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Up] – 15m	LUCID CAB-MR-15M-RA2-A	CAB-MR-15M-RA2-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 5m	LUCID CAB-MR-5M-RA3-A	CAB-MR-5M-RA3-A	No
M12 to RJ45 IP67 Cat6a Cable (Amphenol) [Right Angle, Atlas Side] – 15m	LUCID CAB-MR-15M-RA3-A	CAB-MR-15M-RA3-A	No
M8 GPIO 8-pin (Amphenol) 1.0m Cable	LUCID GPIO-M8-1M-A	GPIO-M8-1M-A	No
M8 GPIO 8-pin (Amphenol) 5.0m Cable	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A	No
M8 GPIO 8-pin (Amphenol) 15.0m Cable	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A	No
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA1-A	GPIO-M8-5M-RA1-A	No
M8 GPIO 8-pin Cable [Right Angle, Down(Triton) / Up(Atlas & Helios)] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA1-A	GPIO-M8-15M-RA1-A	No
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -5.0m	LUCID GPIO-M8-5M-RA2-A	GPIO-M8-5M-RA2-A	No
M8 GPIO 8-pin Cable [Right Angle, Up(Triton) / Down(Atlas & Helios)] (Amphenol) -15.0m	LUCID GPIO-M8-15M-RA2-A	GPIO-M8-15M-RA2-A	No

Tripod Mount Adapter
Atlas Tripod Adapter	ATL-TR	ATL-TR	No

Interface Cards, PoE Injectors, Power Supply
ioi 2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Card	ioi DGEAP2X-PCIE8XG302	PCIE-POE2-MG	No
ioi 1-CH 10G/5G/2.5G/1G PoE+ NBASE-T Ethernet Card	ioi GE10-PCIE4XG301	PCIE-POE1-MG2	No
ioi 4-CH 5G/2.5G/1G PoE+ Ethernet Card	ioi GE5PX4-PCIE4XG301	PCIE-POE4-5G-IOI	No
ioi 1-CH 5G/2.5G/1G PoE+ Ethernet Card	ioi GE5P-PCIE1XG302	PCIE-POE1-5G-IOI	No
Neousys 4-CH 5G/2.5G/1G PoE+ Ethernet Card	Neousys PCIe-PoE454at	PCIE-POE4-5G	No
Procet 10/5.0/2.5GbE 60W PoE++ Injector	Procet PT-PSE104GB-60-10	POEP-PT(EU)	Yes
Procet 5.0/2.5GbE 30W PoE+ Injector	Procet PT-PSE104G-30-5	POEP-PT(PTEU)-5G	Yes
M8 GPIO AC Adapter Power Supply (NA/EU/AU Versions)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1	Yes
