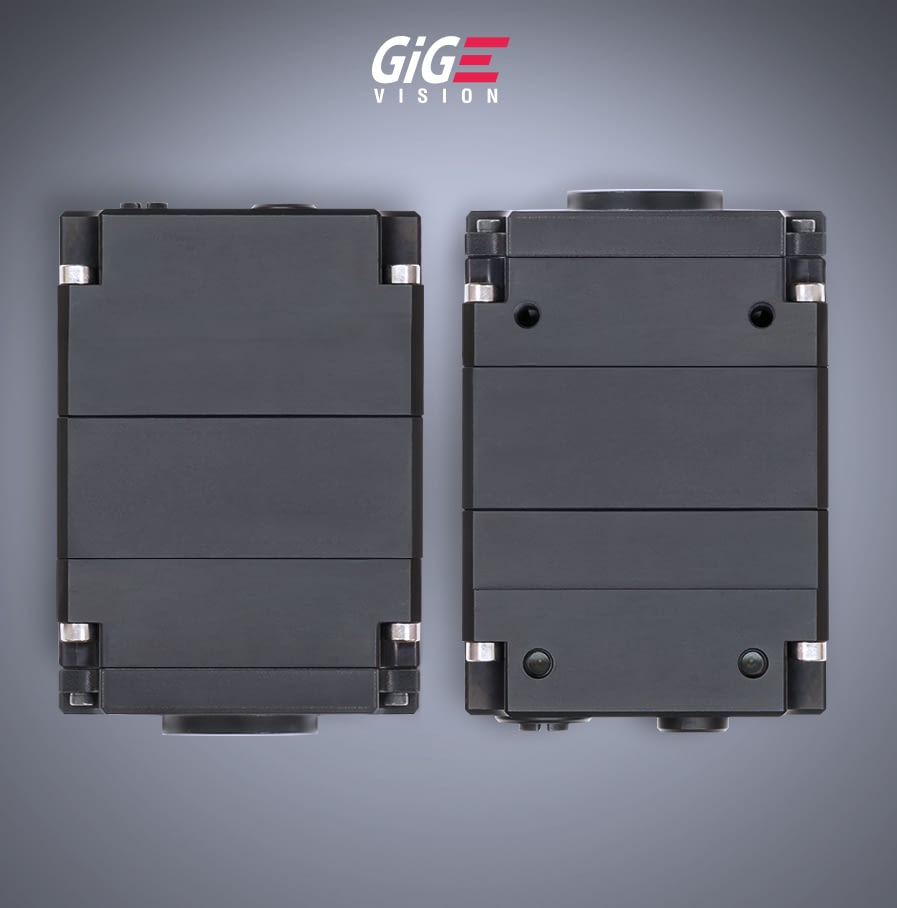

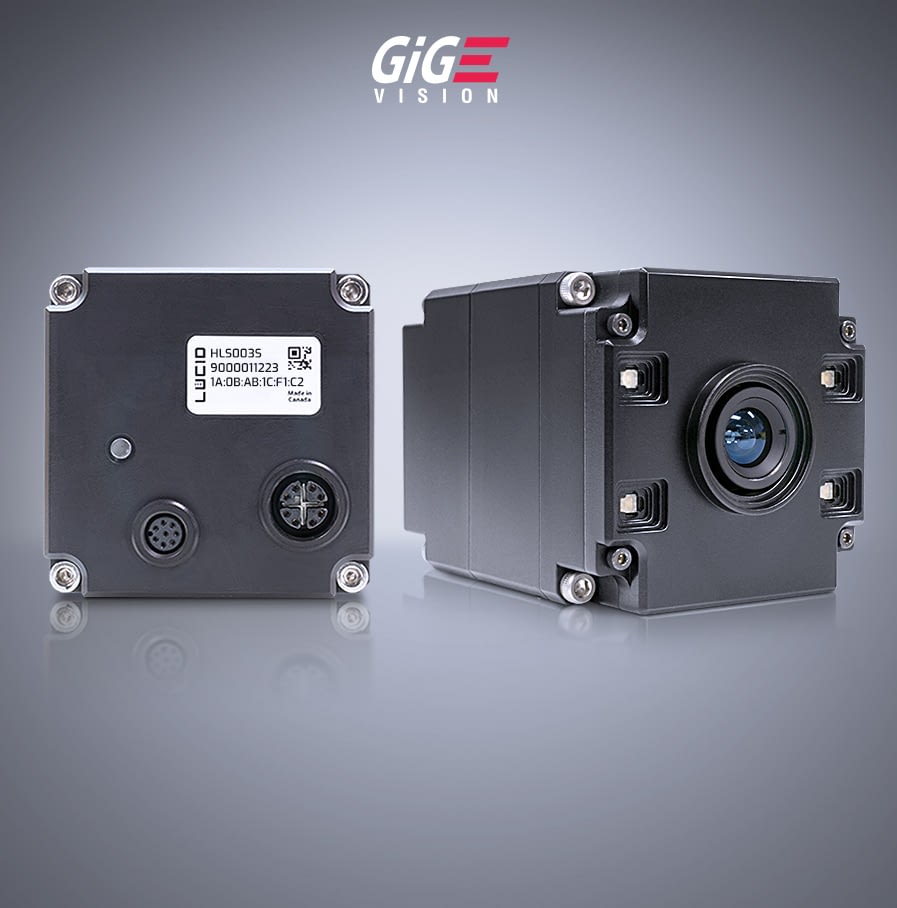

  3. Helios 0.3 MP 3D Camera
센서
Sony DepthSense IMX556 CMOS
해상도
0.3 MP 640 x 480 px
프레임 레이트
30 FPS
모델 크로마 렌즈 마운트 GigE Vision 커넥터 전원 공급 장치

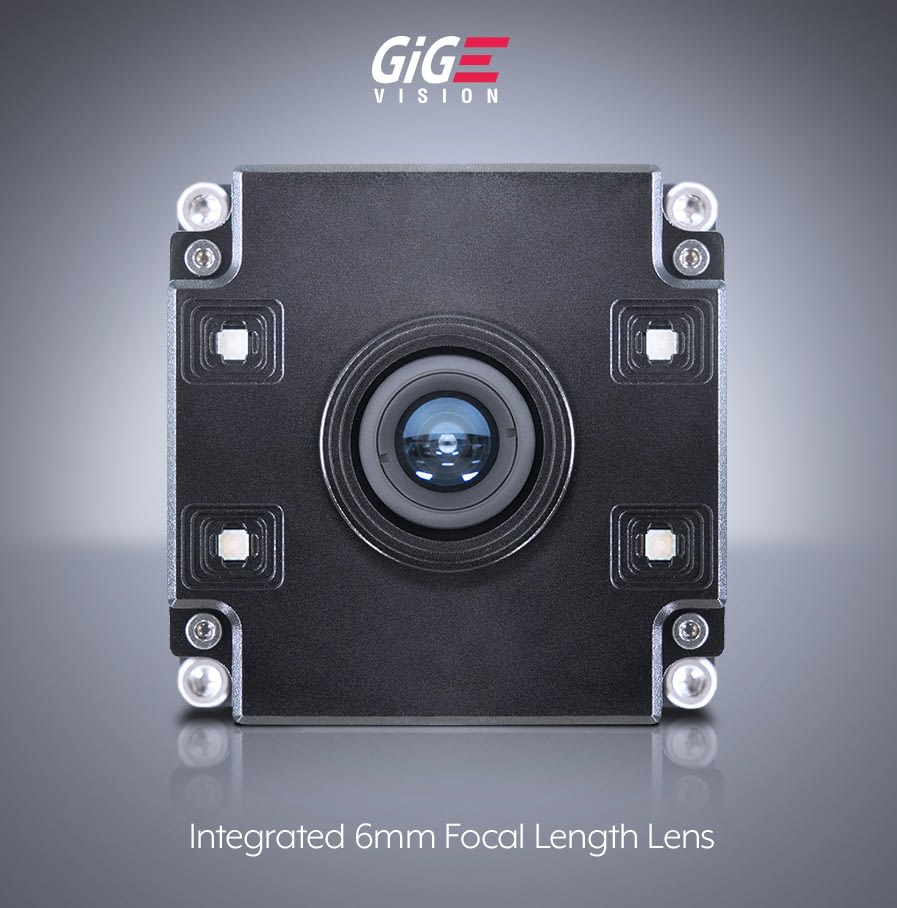

HLS003S-001 Mono Integrated 6mm focal length lens M12 None
HLS-BUN-US1 Mono Integrated 6mm focal length lens M12 NA power supply included

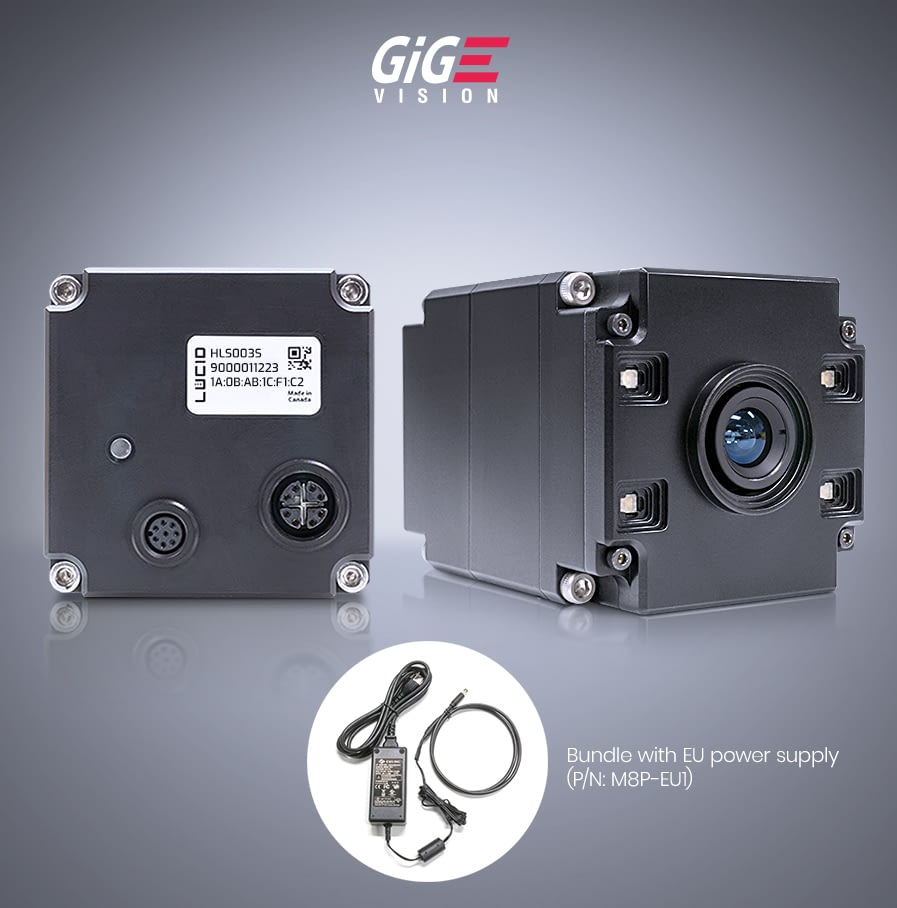

HLS-BUN-EU1 Mono Integrated 6mm focal length lens M12 EU power supply included

Clear
Register or login for pricing
SKU: N/A 카테고리:

명세서

인터페이스 및 전원 정보
디지털 인터페이스 1000BASE-T GigE, M12 X-coded
GPIO인터페이스 8 핀 M8 커넥터
Opto-Isolated I/O Ports 1 input, 1 output
Non-Isolated I/O Ports 2 bi-directional
전원 요구사항 18-24 V through GPIO
소비 전력 12-24Vdc, Pavg <10W, 2.8A peak pulse currentr
센서특성
센서 Sony DepthSense IMX556PLR CMOS
셔터 Global
센서 크기 8 mm (Type 1/2″)
해상도 640 x 480 px, 0.3 MP
픽셀 크기 10.0 µm (H) x 10.0 µm (V)
프레임 레이트 30 FPS @ 0.3 MP (Near Mode: up to 1.5m)
15 FPS @ 0.3 MP (Far Mode: up to 6m)
외관
제품 사이즈 55 x 55 x 77.7 mm
무게 254 g
렌즈 시야 59⁰ x 45⁰ (nominal)
조명 4 x VCSEL laser diodes, Class 1, @ 850nm
표준 및 인증
표준 GigE Vision v2.0, GenICam 3D
응낙 CE, FCC, RoHS, REACH, WEEE,
Eye Safety Class 1 IEC/EN 60825-1:2014
동작 온도 -10° to 60°C (Case Temperature)
충격 및 진동 DIN EN 60068-2-27, DIN EN 60068-2-64
OS Support Windows and Linux
Software Support Arena SDK, C++, C, C#, Python
픽셀 형식
범위 데이터
Coord3D_ABCY16 4-ch point cloud XYZ + 강렬, 16 bits per channel
Coord3D_ABC16 3-ch point cloud XYZ, 16 bits per channel,
Coord3D_C16 Depth map Z plane, 16 bits
강도 이미지
Mono8 8 bit per pixel monochrome raw image
Mono12Packed 12 bit per pixel monochrome raw image
Mono12p 12 bit per pixel in bit stream, monochrome raw image
Mono16 16 bit per pixel monochrome raw image
신뢰 데이터
Confidence16 Confidence map, 16 bits
이미징 속성
노출 Control Manual, 2 settings:  250 μs or 1000 μs
Gain Control Manual, 2 settings: High or Low
Synchronization Software trigger, hardware trigger, PTP (IEEE 1588)
Output Format Binary .PLY file (via Arena SDK)
C카메라 기능
User Sets 1 default and 2 custom user set
작동 거리 Near mode: up to 1.5m
Far mode: up to 6m
정확성 Near Mode (0.3 – 1.5m): ± 5 mm
Far Mode (0.3 – 1.5m): ± 5 mm
 (0.3 – 6.0m): ± 10 mm
정도 (Depth Noise) Standard deviation less than 2mm at 1m
Communication Channels 5 Channels. 사용자가 카메라 간 간섭없이 최대 5 대의 Helios2 카메라를 작동 할 수 있습니다

공연

Helios Performance Results
Interactive graphs – please hover over the points in the graph to reveal precision numbers (mm)

Accuracy
Near Mode (0.3 - 1.5m): ± 5 mm
Far Mode (0.3 – 1.5m):
Far Mode (0.3 – 6.0m): 		± 5 mm
± 10 mm
Precision
Distance (m) Near Mode (mm) Far Mode (mm)
0.5: 0.69 0.53
1.0: 1.60 1.25
1.5: 3.11 2.24
2.0: 3.17
3.0: 6.81
4.0: 10.8
5.0: 16.8
6.0: 25.4

Test Conditions:

  • Target: White paper mounted on bar attached to motion stage
  • Helios camera: mounted on tripod with front of case aligned to stage zero position
  • Camera setting: Coord3D_C16 Pixel Format, bilateral filtering OFF, 1.5m or 6m operating mode, camera warmed up for 20 minutes.
  • Imaging environment: Room light ON during testing
  • Motion stage moved in 10mm steps, for each step, record 10 x 10 pixels at image center, 32 images
  • Accuracy measured as difference between motion stage position and camera’s average measured depth over the 10 x 10 pixels region of interest

도면

Helios Camera Drawings
Helios ToF Camera Drawings

시작하기 / 다운로드

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:
  • Connect your camera for the first time
  • Download and install Arena SDK or 3rd party software
  • Enable Jumbo Frames on the Host PC and Camera
  • Assign camera IP address
  • Update camera firmware

Downloads

Visit our Downloads Page for access to:
  • Arena SDK (Arena View, APIs, Examples)
  • 3D CAD drawings (.step files)
  • Camera firmware files
  • Technical Documentation
