Name: Triton Line Scan 2k 60 kHz Model
SKU: TRI02KA-MC
Price: 795.00 USD
Availability: InStock

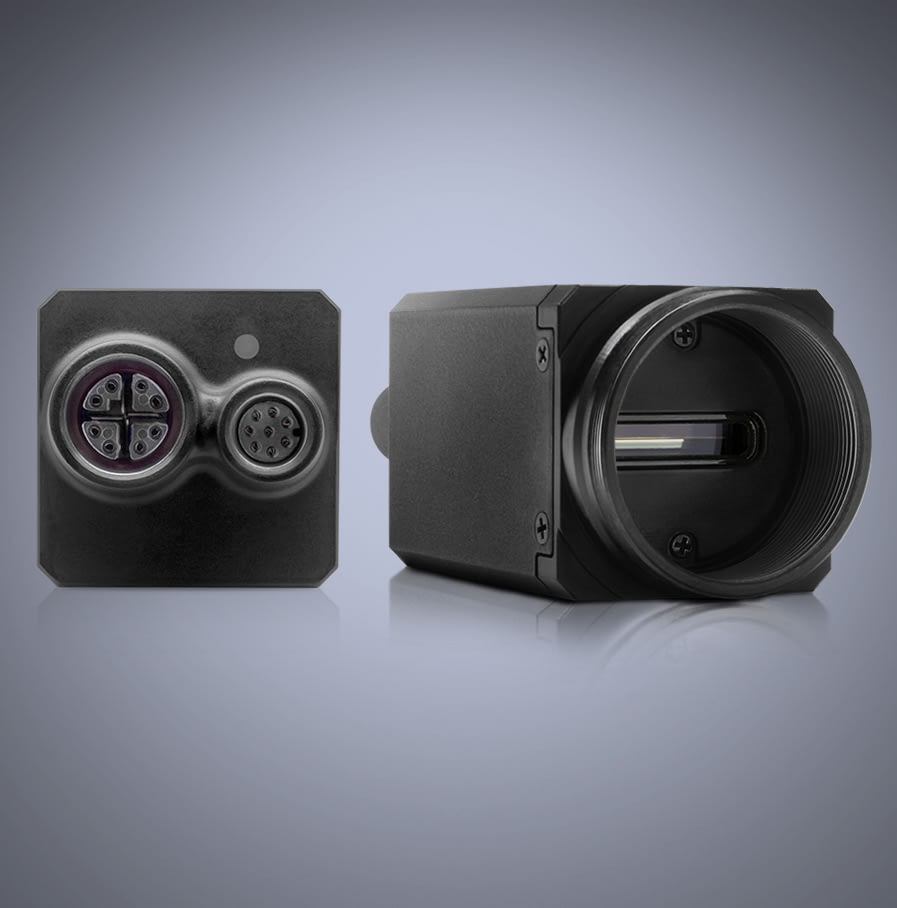

Triton Line Scan 2k 60 kHz Model

Triton 라인 스캔 카메라는 종이, 플라스틱 및 금속 제조의 연속 검사와 같은 광범위한 고속 응용 분야에 이상적입니다. 기차 또는 도로 교통과 같은 물체 움직임 검사. 또한 OCR 인식(예: 우편, 바코드 스캔), 식품 분류, PCB 검사, 제약 검사 및 물체가 지속적으로 움직이는 기타 컨베이어 벨트 애플리케이션에 매우 적합합니다.

센서
AMS Dragster DR-2k-7 CMOS

해상도
2048 x 1 px

Line Rate
60 kHz

모델	크로마	렌즈 마운트	GigE Vision 커넥터	포함 된 액세서리
TRI02KA-MC	Mono	C-mount	M12	M8 GPIO IP67 Cap

USD $795.00

사양서

TRI02KA Specifications

센서특성
센서	AMS Dragster DR-2k-7 CMOS
셔터	Global
센서 크기	14.3 mm
해상도	2048 x 1 px
픽셀 크기	7.0 µm (H) x 7.0 µm (V)
Line Rate	60 kHz

외관
제품 사이즈	29 x 29 x 45 mm

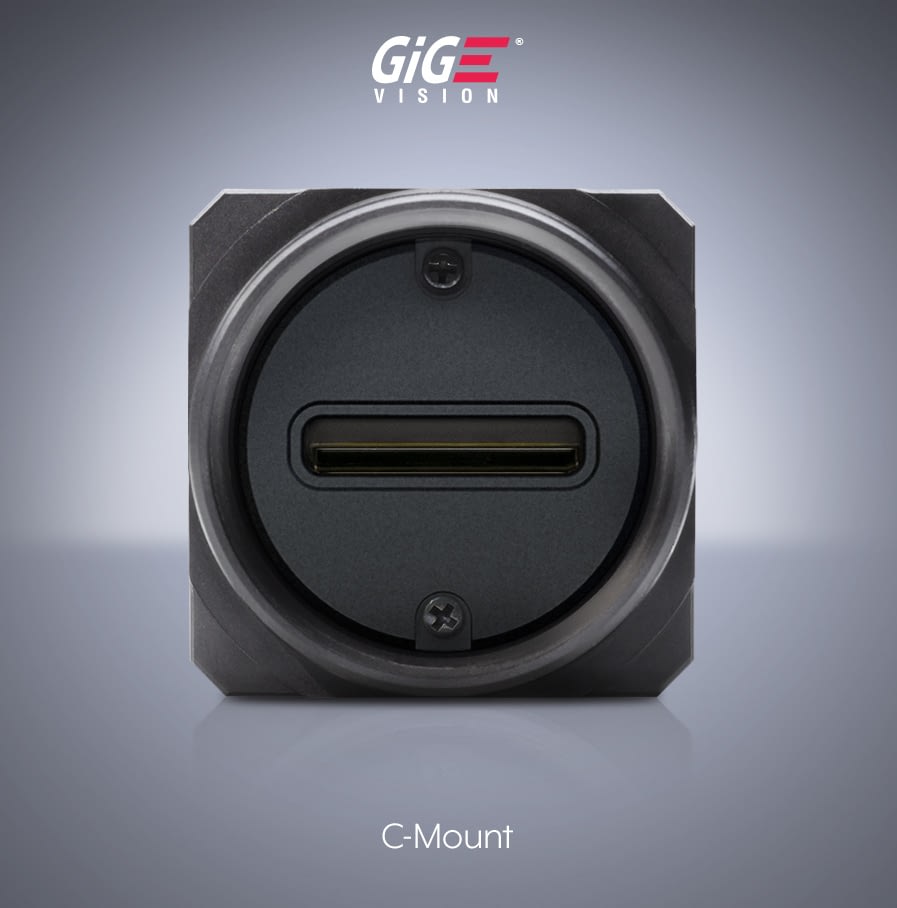

렌즈 마운트	C-Mount
무게	67 g
진입 보호	IP67 (IP67 보호를 위해 Triton은 IP67 렌즈 튜브 및 케이블과 함께 사용해야합니다)

인터페이스 및 전원 정보
디지털 인터페이스	1000BASE-T GigE M12 (8-Pin X-Coded), PoE
GPIO인터페이스	8 핀M8커넥터
Opto-Isolated I/O Ports	1 input, 1 output
Non-Isolated I/O Ports	2 bi-directional
전원 요구사항	PoE (IEEE 802.3af), or 12-24 VDC external
소비 전력	PoE를 통한 3.25W, 외부 전원 공급시 2.6W

이미징 속성
메모리	380 MB
이미지 처리	Gain, gamma, black level, LUT
픽셀 형식	Mono8/16, Mono12p, Mono12Packed
이미지 모드	Horizontal and vertical binning, ROI
ADC	10 / 12 bit
Gain범위	0 dB to 24dB analog and digital
Conversion Gain	Normal and High Mode (High: 4x in analog domain)
노출 시간	2 μs to 9.9ms

카메라 기능
User Sets	1 default and 2 custom user set
File System Size	16 MB
Chunk Data	Image, CRC, trigger Line, timestamp, line status, sequencer set, pixel format, width/height, offset X/Y, pixel dynamic range min/max, gain, black level, exposure time
Counter & Timer	2 counters and 2 timers
Synchronization	Software trigger, hardware trigger, PTP (IEEE 1588)

표준 및 인증
표준	GigE Vision v2.0
응낙	CE, FCC, RoHS, REACH, WEEE
보관 온도	-30 to 60°C
동작 온도	0 to 55°C 주변
습도	Operating: 20% ~ 80%, relative, non-condensing Storage: 20% ~ 95%, relative, non-condensing
충격 및 진동	DIN EN 60068-2-27, DIN EN 60068-2-64, DIN EN 60068-2-6
산업용 EMC 내성	DIN EN 61000-6-2
보증	3 year

EMVA 1288 데이터

Interactive graphs – please hover over the points in the graph to reveal QE %

TRI02KA Line Scan (Mono, AMS Dragster DR-2k-7 CMOS)

Mono EVMA 1288 Results
Dynamic Range	66.53dB
SNR (Max)	43.91 dB
Saturation Capacity	24585 e-
Absolute Sensitivity Threshold (Measured at 527.5nm)	21.24 γ
Temporal Dark Noise	10.96 e-
Gain	0.167 DN / e-

EMVA 1288 is the Standard for Measurement and Presentation of Specifications for Machine Vision Sensors and Cameras. For more information of the EMVA 1288 standard please visit http://www.emva.org/standards-technology/emva-1288/

도면

Triton C-Mount Drawings

시작하기 / 다운로드

Getting Started Guide

For camera setup please visit our Getting Started Guide for LUCID cameras. This page covers how to:

Connect your camera for the first time
Download and install Arena SDK or 3rd party software
Enable Jumbo Frames on the Host PC and Camera
Assign camera IP address
Update camera firmware

Downloads

Visit our Downloads Page for access to:

Arena SDK (Arena View, APIs, Examples)
3D CAD drawings (.step files)
Camera firmware files
Technical Documentation

부속품

삼각대 어댑터, 렌즈, 케이블 및 PoE(Power Over Ethernet) 이더넷 인젝터/인터페이스 카드는 별도로 판매됩니다. 대부분의 소비자 마더보드 및 노트북의 이더넷 포트는 PoE를 지원하지 않습니다. 모든 액세서리에 대한 자세한 내용은 액세서리 페이지를 방문하십시오.

렌즈 제조업체 부품 번호	렌즈 설명	0.4MP TRI004S	1.6MP TRI016S	2.3MP TRI023S	2.8MP TRI028S	3.2MP TRI032S	5.0MP TRI050S	5.0MP TRI051S	5.0MP TRI050S-PQ	5.4MP TRI054S	6.3MP TRI064S	7.1MP TRI071S	8.1MP TRI081S	8.9MP TRI089S	12.2MP TRI122S	12.3MP TRI120S	12.3MP TRI124S	16.2MP TRI162S	20.0MP TRI200S	20.4MP TRI204S	24.5MP TRI245S	2K TRI02KA
Edmund Optics UC #33-300	C-Mt 1/2″ 4mm f/1.8	Good	Good	Good
Edmund Optics UC #33-301	C-Mt 1/2″ 6mm f/1.85	Good	Good	Good
Edmund Optics UC #33-307	C-Mt 1/2″ 8mm f/1.8	Good	Good	Good
Edmund Optics UC #33-303	C-Mt 1/1.8″ 12mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-304	C-Mt 1/1.8″ 16mm f/1.8	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics UC #33-305	C-Mt 1/1.8″ 25mm f/1.85	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #67-709	C-Mt 1/1.8" 6mm, f1.4	Good	Good	Good		Vignette		Vignette			Vignette				Vignette
Edmund Optics C #58-000	C-Mt 2/3" 8.5mm, f/1.3	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #58-001	C-Mt 2/3" 12mm, f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-870	C-Mt 2/3" 16mm, f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-871	C-Mt 2/3" 25mm, f/1.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-872	C-Mt 2/3" 35mm, f/1.65	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Edmund Optics C #59-873	C-Mt 2/3" 50mm, f/2	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL060C	C-Mt 5MP 2/3″ 6mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL080C	C-Mt 5MP 2/3″ 8mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL120C	C-Mt 5MP 2/3″ 12mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL160C	C-Mt 5MP 2/3″ 16mm f/2.0	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Universe Compact C #BL250C	C-Mt 5MP 2/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF6XA-5M	C-Mt 5MP 2/3″ 6mm f/1.9	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF8XA-5M	C-Mt 5MP 2/3″ 8mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF12XA-5M	C-Mt 5MP 2/3″ 12mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF16XA-5M	C-Mt 5MP 2/3″ 16mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon HF-XA-5M #HF25XA-5M	C-Mt 5MP 2/3″ 25mm f/1.6	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good		Good
Fujinon CF-ZA-1S#CF8ZA-1S	C-Mt 23MP 1.2″ 8mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Vignette	Good
Fujinon CF-ZA-1S #CF12ZA-1S	C-Mt 23MP 1.2″ 12mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF162ZA-1S	C-Mt 23MP 1.2″ 16mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF252ZA-1S	C-Mt 23MP 4/3″ 25mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF352ZA-1S	C-Mt 23MP 4/3″ 35mm f/1.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Fujinon CF-ZA-1S #CF502ZA-1S	C-Mt 23MP 4/3″ 50mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPY #V0828-MPY2	C-Mt 12MP 1.1″ 8mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1228-MPY2	C-Mt 12MP 1.1″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V1628-MPY2	C-Mt 12MP 1.1″ 16mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V2528-MPY	C-Mt 12MP 1.1″ 25mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPY #V3528-MPY	C-Mt 12MP 1.1″ 35mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good		Good			Good
Computar MPT #F1228-MPT	C-Mt 45MP 4/3″ 12mm f/2.8	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Computar MPT #F2524-MPT	C-Mt 45MP 4/3″ 25mm f/2.4	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good	Good
Edmund Optics CA #11-320	TFL-Mt APS-C 50mm f/1.8
Edmund Optics CA #11-321	TFL-Mt APS-C 75mm f/2.8
Edmund Optics CA #11-322	TFL-Mt APS-C 100mm f/2.8

렌즈 어댑터	Manufacturer Part #	SKU
C-마운트-S-마운트(M12) 어댑터	LUCID ADA-C-S	ADA-C-S

IP67 렌즈 튜브	Manufacturer Part #	SKU
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 27mm, 내부 길이: 7.1mm	LUCID IPTC-D270L71	IPTC-D270L71
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 27mm, 내부 길이: 18.1mm	LUCID IPTC-D270L181	IPTC-D270L181
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 27mm, 내부 길이: 34.6mm	LUCID IPTC-D270L346	IPTC-D270L346
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 35.5mm, 내부 길이: 29.9mm	LUCID IPTC-D355L299	IPTC-D355L299
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 35.5mm, 내부 길이: 39.9mm	LUCID IPTC-D355L399	IPTC-D355L399
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 35.5mm, 내부 길이: 59.9mm	LUCID IPTC-D355L599	IPTC-D355L599
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 44mm, 내부 길이: 38.5mm	LUCID IPTC-D440L385	IPTC-D440L385
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 44mm, 내부 길이: 68.5mm	LUCID IPTC-D440L685	IPTC-D440L685
IP67 마운트 렌즈 튜브, 내부 ⌀: 59mm, 내부 길이: 7.5mm	LUCID IPTC-D590L75	IPTC-D590L75
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 59mm, 내부 길이: 31.5mm	LUCID IPTC-D590L315	IPTC-D590L315
IP67 C-마운트 렌즈 튜브, 내부 ⌀: 59mm, 내부 길이: 55.5mm	LUCID IPTC-D590L555	IPTC-D590L555
IP67 마운트 렌즈 튜브, 내부 ⌀: 59mm, 내부 길이: 71.5mm	LUCID IPTC-D590L715	IPTC-D590L715
IP67 마운트 렌즈 튜브, 내부 ⌀: 59mm, 내부 길이: 81.5mm	LUCID IPTC-D590L815	IPTC-D590L815

Triton 모델용 케이블
M12 – RJ45 IP67 Cat6a 케이블 (Amphenol) – 2.0m, 짙은 녹색	LUCID CAB-MR-2M-A	CAB-MR-2M-A
M12 – RJ45 IP67 Cat6a 케이블 (Amphenol) – 5.0m, 짙은 녹색	LUCID CAB-MR-5M-A	CAB-MR-5M-A
M12 – RJ45 IP67 Cat6a 케이블 (Amphenol) – 15.0m, 짙은 녹색	LUCID CAB-MR-15M-A	CAB-MR-15M-A
M12 – RJ45 IP67 Cat6a 케이블 [직각, 아래] – 5m (Amphenol)	LUCID CAB-MR-5M-RA1-A	CAB-MR-5M-RA1-A
M12 – RJ45 IP67 Cat6a 케이블 [직각, 아래] – 15m (Amphenol)	LUCID CAB-MR-15M-RA1-A	CAB-MR-15M-RA1-A
M12 – RJ45 IP67 Cat6a 케이블 [ 직각, 위쪽 ] – 5m (Amphenol)	LUCID CAB-MR-5M-RA2-A	CAB-MR-5M-RA2-A
M12 – RJ45 IP67 Cat6a 케이블 [ 직각, 위쪽 ] – 15m (Amphenol)	LUCID CAB-MR-15M-RA2-A	CAB-MR-15M-RA2-A
M12 to RJ45 IP67 Cat6a 케이블 [직각, Triton Side] – 5m (Amphenol)	LUCID CAB-MR-5M-RA4-A	CAB-MR-5M-RA4-A
M12 to RJ45 IP67 Cat6a 케이블 [직각, Triton Side] – 15m (Amphenol)	LUCID CAB-MR-15M-RA4-A	CAB-MR-15M-RA4-A
M8 GPIO 8핀 (Amphenol) 1.0m 케이블	LUCID GPIO-M8-A	GPIO-M8-A
M8 GPIO 8핀 (Amphenol) 5.0m 케이블	LUCID GPIO-M8-5M-A	GPIO-M8-5M-A
M8 GPIO 8핀 (Amphenol) 15.0m 케이블	LUCID GPIO-M8-15M-A	GPIO-M8-15M-A
M8 GPIO 8핀 케이블 [직각, 아래(Triton) / 위(Atlas & Helios)]-5.0m (Amphenol)	LUCID GPIO-M8-5M-RA1-A	GPIO-M8-5M-RA1-A
M8 GPIO 8핀 케이블 [직각, 아래(Triton) / 위(Atlas & Helios)]-15m (Amphenol)	LUCID GPIO-M8-15M-RA1-A	GPIO-M8-15M-RA1-A
M8 GPIO 8핀 케이블 [ 직각, 위(Triton) / 아래(Atlas & Helios)]-5.0m (Amphenol)	LUCID GPIO-M8-5M-RA2-A	GPIO-M8-5M-RA2-A
M8 GPIO 8핀 케이블 [ 직각, 위(Triton) / 아래(Atlas & Helios)]-15m (Amphenol)	LUCID GPIO-M8-15M-RA2-A	GPIO-M8-15M-RA2-A

Tripod Mount Adapter & Misc
삼각대 어댑터(Phoenix & Triton)	PHX-TR	PHX-TR
M8 GPIO IP67 Cap *(1 cap included with each Triton unit)	CAP-M8	CAP-M8

인터페이스 카드 / PoE 인젝터 / 전원 공급 장치
LR-LINK PCIe GigE Vision PoE+ 이더넷 네트워크 어댑터	LR-LINK LRES2001PT-POE	PCIE-POE1-LR
2-CH LR-LINK PCIe GigE Vision PoE+ 이더넷 네트워크 어댑터	LR-LINK LRES2002PT	PCIE-POE2-LR
4-CH PCIe 2.5G/1G, GigE Vision PoE+ 이더넷 네트워크 어댑터	ioi GE2PX4-PCIE4XE301	PCIE-POE4-2G
TP-Link 1GbE 15.4W PoE 인젝터	TP-Link TL-POE150S	POEP
Procet 2.5/5.0GbE 30W PoE+ 인젝터 (802.3af/at, NA/EU)	Procet PT-PSE104G-30-5	POEP-PT-5G / POEP-PTEU-5G
M8 GPIO AC 어댑터 전원 공급 장치(NA/EU/AU)	MEAN WELL GST60A18-P1J	M8P-US1, M8P-EU1, M8P-AU1
