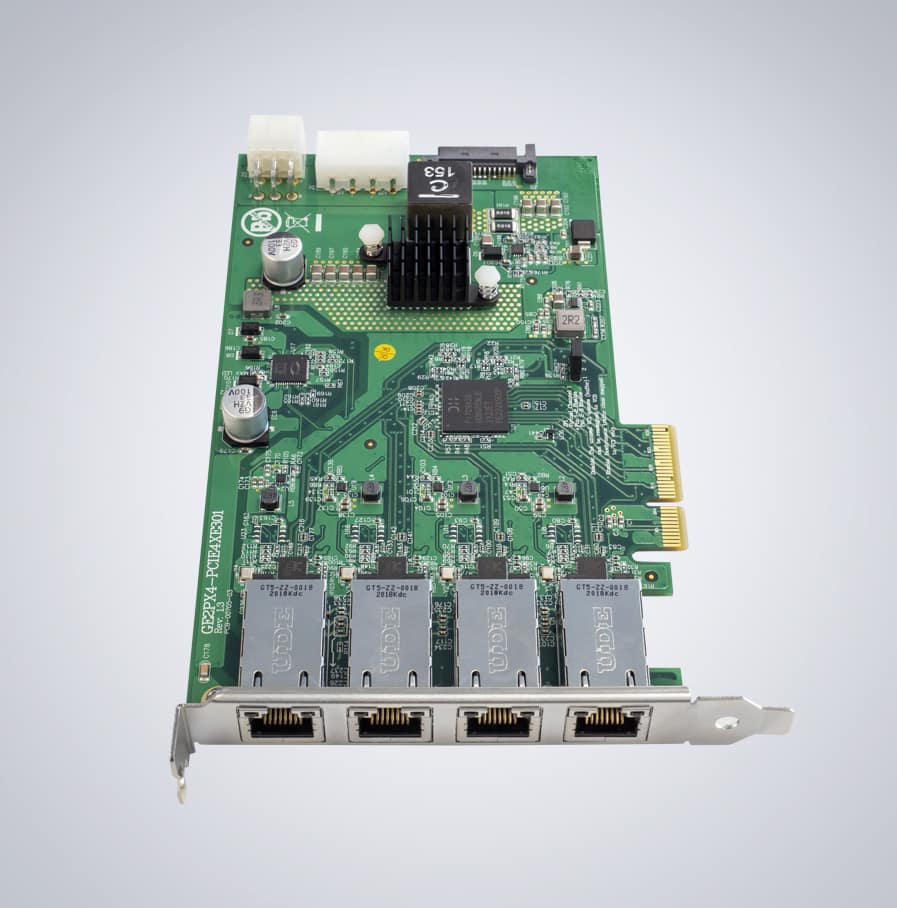

PCIE-POE4-2G 10/100/1000M/2.5G 이더넷 컨트롤러는 4단 속도(4포트) IEEE 802.3 준수 MAC(Media Access Controller)와 4단 이더넷 트랜시버, PCI Express 버스 컨트롤러 및 임베디드 메모리를 결합합니다. . 크로스오버 감지 및 자동 수정, 극성 수정, 적응 이퀄라이제이션, 누화 제거, 에코 제거, 타이밍 복구 및 오류 수정과 같은 기능이 구현되어 고속에서 강력한 송수신 기능을 제공합니다.
명세서
Manufacturer #
ioi GE2PX4-PCIE4XE301
PCI Express
PCI Express 슬롯 지원(x4, x8, x16) 참고: 최상의 성능(5.0Gbps)을 얻으려면 호스트 컴퓨터의 PCIe 2세대 호환 슬롯에 설치해야 합니다.
Compliant with PCI Express Base Specification Revision 2.1, PCI Express CEM Specification Revision 2.0, PCI-to-PCI Bridge Architecture Specification Revision 1.2
Link power management states: L0, L0s, L1, L2/L3 Ready, and L3, Device states: D0 and D3hot, Active state power management for L0s and L1 states
Supports up to 256-byte maximum payload size
POE + Feature
Supports IEEE 802.3at Power Sourcing Equipment (PSE)
Operates from a 54 V supply
Provides PD real-time protection through the following mechanisms: overload, under-load, over-voltage, over-temperature, and short-circuit.
Auto mode – allows turning PDs on and off automatically.
Power input for PoE: From PCIe Slot (25W or 48W), IDE Big 4-pin (60W), SATA Power Connector (48W), Mini-fit Jr. Dual Row 6-pin (60W)
Ethernet Feature
Supports hardware ECC (Error Correction Code) function and hardware CRC (Cyclic Redundancy Check) function
100 meters over Cat 5e and Cat 6a at 2.5Gbps/ 1Gbps/ 100Mbps/ 10Mbps
Advanced cable diagnostics with On-chip high resolution cable analyzer
