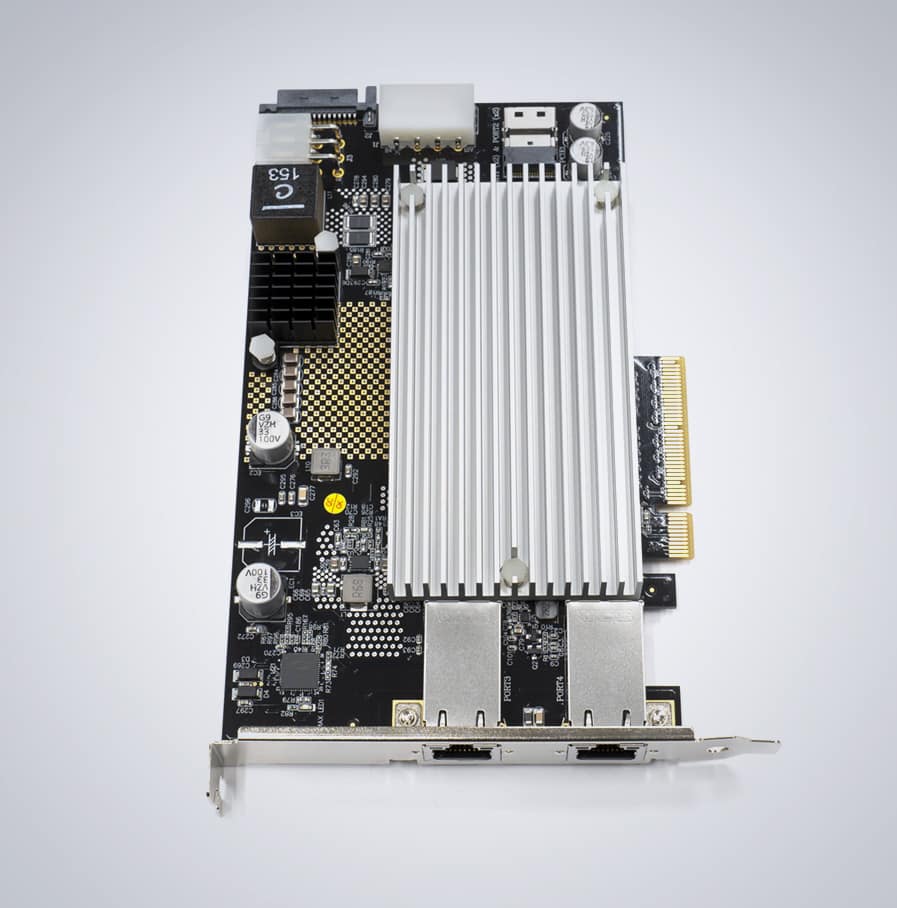

2-CH 10G/5G/2.5G/1G PoE+ NBASE-T Netzwerkkarte

Achtung! PCIE-POE2-MG (IOI DGEAP-PCIE4XG302) wird nicht mehr hergestellt. Bestellungen für PCIE-POE2-MG werden noch bis zum 31. Januar 2024 angenommen. Weitere Informationen entnehmen Sie bitte PCN2023009 (PDF). Für die gleichwertige Ersatzkarte sehen Sie bitte die neue P/N: PCIE-10GPOE2-LUCID (LUCID 2-CH 10G/1G RDMA PoE+ Netzwerkkarte)

Spezifikationen

HerstellerNr.
  • ioi DGEAP2X-PCIE8XG302
PCI Express
  • PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1 & 2.0), PCI Power Management Spec r1.2, Microsoft Windows Logo Compliant, Supports Access Control Services, Dynamic link-width control, Dynamic SerDes Speed Control
MAC
  • Large Send Offload (LSO), Receive-Side Scaling (RSS), Direct Cache Access (DCA) header checksum
  • WoL power management, On-chip CPU DASH, MACsec, Quality of Service (QOS) support, Jumbo frames (up to 16Kbytes), IPv4, IPv6/TCP and IPv6/UDP checksum offload
PHY
  • Integrated Aquantia AQrate PHY featuring NBASE-T technology
    • 100 meters over Cat 6a at 10Gbps
    • 100 meters over Cat 5e and Cat 6a at 5Gbps/ 2.5Gbps/ 1Gbps/ 100Mbps
  • Advanced cable diagnostics with On-chip high resolution cable analyzer
  • Audio Video Bridging (AVB) and 1588v2
  • EEE support
  • Supported Data Rates: 10G/ 5G/ 2.5G/ 1G/ 100 Mbps
  • Standard compliance: IEEE 802.3bz – NBASE-T, IEEE 802.3x – flow control, IEEE 802.1P – quality of service, IEEE 802.1QAV – AVB
POE+ Feature
  • Supports IEEE 802.3at Power Sourcing Equipment (PSE), Operates from a 54 V supply, Provides PD real-time protection through the following mechanisms: overload, under-load, over-voltage, over-temperature, and short-circuit, Auto mode – allows turning PDs on and off automatically.
Power Input for POE+
  • Step-Up 12V from the following source (A, B, C): A. From PCIe Slot (25 W or 75 W depends on mainboard design), B. From IDE Big 4 pin Power Connector or/and SATA 15pin Power Connector, C. From Mini-Fit Jr. Dual Row 6pin Power Connector
Number of Port

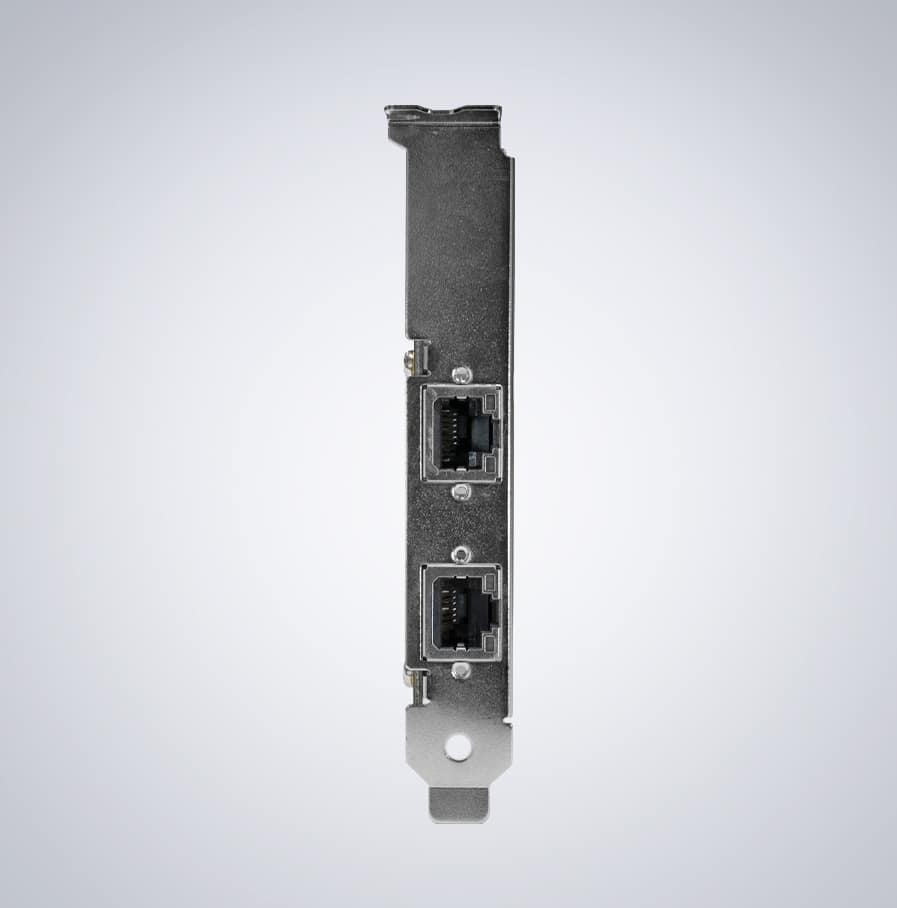

  • Two (2) 10GBASE-T RJ45 Ethernet port with Screw Holes for thumbscrew locking Type Ethernet Cable, One SFF-8654 4x 38pin connector ( PCIe x2, PCIe x2), One JST Compatible 2pin Wafer (Supply 3.3Vaux Power)

USD $399.00

Register or login for pricing
Artikelnummer: PCIE-POE2-MG Kategorie:
