ADLINK 4-CH PCIe GigE Vision PoE+ Netzwerkkarte

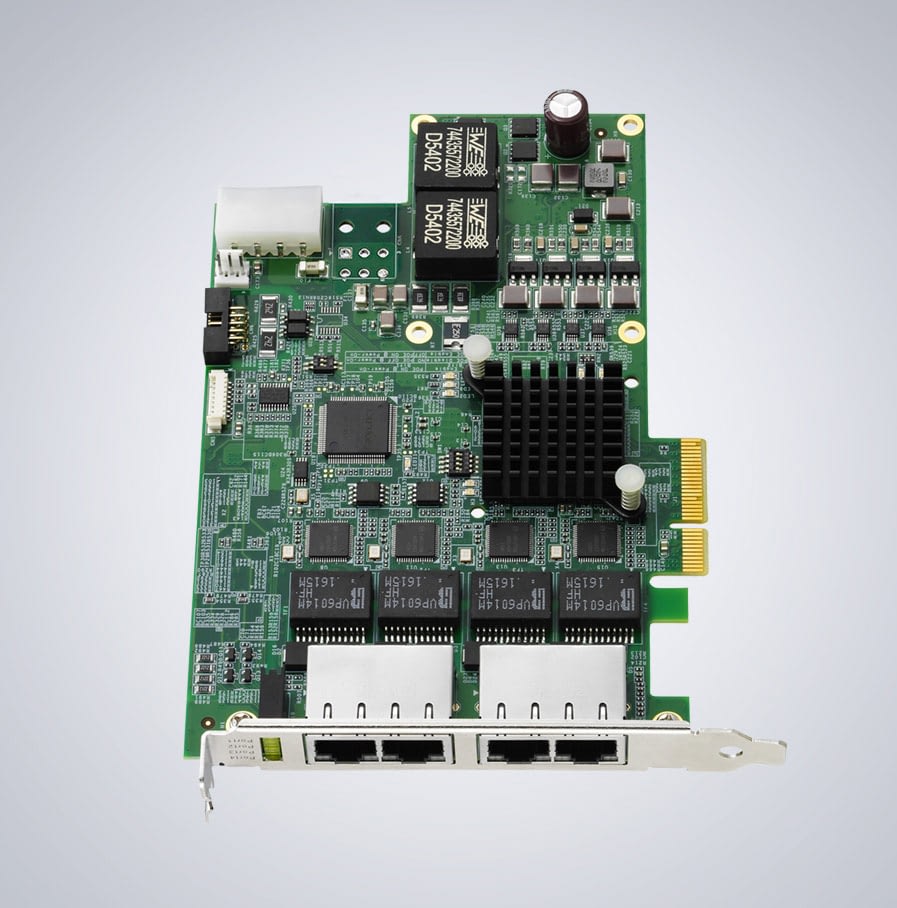

Die Adlink GIE74 PCI-Express Karte verfügt über 4 unabhängige Gigabit Ethernet Ports zur Datenübertragung und unterstützt bis zu 4 GigE-Kameras mit Power over Ethernet (PoE). Die Karte ermöglicht Datenübertragungsraten von bis zu 1 Gbit pro Sekunde bei Kabellängen von bis zu 100 Meter.

Spezifikationen

Modell #PCIE-POE4
HerstellerNr.ADLINK PCIe-GIE74
PCI-SpezifikationsrevisionPCI Express® x4
ChipsetIntel I210AT
Anzahl Ports4 fully-integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.
PoE+ (Power over Ethernet Plus), IEEE 802.3at compliant, supporting 0, 1, 2, 3, and 4, providing up to 30W.
9 kB jumbo frame support.
Functions• PoE power management
• Link aggregation, IEEE 1588 (PTP technology)
• Multiple cards and multiple cameras
• PoE protection
Umgebungsbedingungen60W PoE: 0˚C bis +70˚C (32˚F bis 150˚F)
Luftfeuchtigkeit: 5% bis 90% RHNC
Leistungsaufnahme+3,3V max @ 3A
• Max 61,6W PoE power w/ 4-pin (+12V@6A) Molex connector (sold separately)
• Max 20W PoE power w/ PCIe slot (+12V@2.1A)
Abmessungen167,6 mm x 106,6 mm (6,6” x 4,2”) (W x L)

USD $330.00

Login to see prices
Artikelnummer: PCIE-POE4 Kategorie:
