Using Pleora eBUS SDK software for Windows

Pleora’s eBUS™ Software Development Kit (SDK) is a feature-rich toolkit that allows developers to produce video applications in short timeframes, while reducing risk and lowering design and support costs. Pleora’s eBUS SDK features a large library of sample code, which serves as a quick-start platform for each development project and is fully GigE Vision compliant. The following instructions will explain how to use Lucid Vision cameras with Pleora eBUS SDK for Windows.

System Specifications

  • Windows 10 Pro 64-bit, version 1709, build 16299.64
  • eBUS SDK 5.0.0.4100 64-bit

Prerequisites

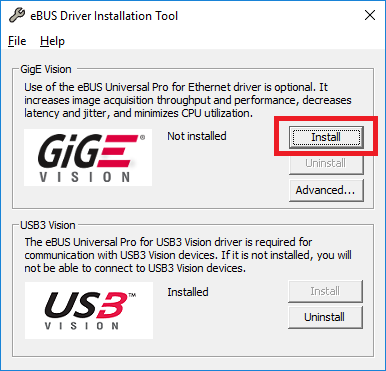

Installing the eBUS Universal Pro For Ethernet Filter Driver is recommended. You can install the eBUS Universal Pro For Ethernet Filter Driver using the eBUS Driver Installation Tool, which can be launched from the Start Menu. Click the Install button in the eBUS Driver Installation Tool to install the eBUS Universal Pro For Ethernet Filter Driver.

https://d1d1c1tnh6i0t6.cloudfront.net/wp-content/uploads/2018/01/pleora_windows_ebus_driver_installation_tool.png

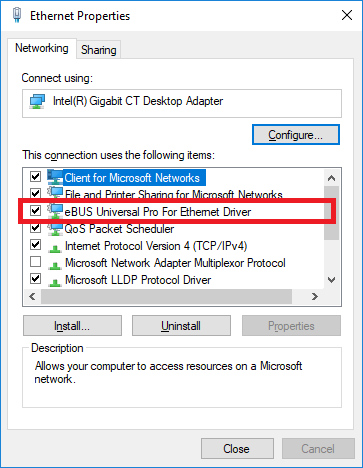

Verify the eBUS Universal Pro For Ethernet Filter Driver is installed in the Ethernet adapter’s properties window.

https://d1d1c1tnh6i0t6.cloudfront.net/wp-content/uploads/2018/01/pleora_windows_filter_driver.png

eBUS Player

  1. Launch eBUS Player to launch Pleora’s image acquisition program. eBUS Player can be launched from the Start Menu.

  2. Press pleora_windows_ebus_player_button_select_connect to open the camera selection screen and connect to your camera.

    https://d1d1c1tnh6i0t6.cloudfront.net/wp-content/uploads/2018/01/pleora_windows_ebus_player.png

  3. Click pleora_windows_ebus_player_button_play to acquire images from the camera.

  4. Click pleora_windows_ebus_player_button_stop to stop acquiring images from the camera.

  5. Click pleora_windows_ebus_player_button_communication_control to control connection and communication settings between the host system and the camera.

  6. Click pleora_windows_ebus_player_button_device_control to control camera settings.

  7. Click pleora_windows_ebus_player_button_image_stream_control to open image stream settings and view performance statistics.

  8. Click pleora_windows_ebus_player_button_disconnect to release control of the camera.

eBUS SDK Samples

Pleora eBUS SDK installs sample programs in your Samples and SamplesDotNet folder. Please note that some of the included samples are not necessarily intended for GigE Vision devices.
